CNC Turned Parts Manufacturer for Custom Precision Components
LuckyHXS manufactures custom shafts, pins, sleeves, bushings, threaded inserts, connectors, fittings and complex turned components from customer drawings. We review diameter, length, fit, runout, threads, grooves, material, finishing and inspection requirements before selecting the machining route.
Metal and engineering-plastic turned parts for prototype validation and repeat production.
PDF, STEP, STP, IGES, DWG and DXF files can be reviewed with your material, quantity and critical-feature requirements.
Custom CNC Turned Parts Built Around the Drawing
A turned component is defined by more than its outside diameter. Mating fits, internal bores, shoulders, threads, grooves, cross holes and relationships to the rotational axis determine how the part should be machined and inspected.
Supply Type
Custom made-to-drawing turned components
Common Products
Shafts, pins, sleeves, bushings, spacers, threaded inserts, connectors and fittings
Processes
CNC turning, Swiss machining, automatic lathe machining and turn-mill coordination
Materials
Aluminum, stainless steel, brass, copper, free-machining steel, POM and PTFE
Project Stage
Prototype samples, validation quantities and repeat orders
Drawing Inputs
2D drawings, 3D CAD models or approved physical samples
Engineering Focus
Fit, concentricity, runout, thread quality, burr control and repeatability
"The manufacturing route is selected from the component’s geometry, functional relationships, material and quantity rather than from a generic machine label."
What Are CNC Turned Parts?
CNC turned parts are components produced by rotating bar stock or another round workpiece while controlled cutting tools remove material. The process is well suited to cylindrical geometry, controlled diameters, bores, shoulders, tapers, grooves, chamfers and internal or external threads.
A CNC turned parts manufacturer should understand how these features work together. A correct diameter does not automatically prove that two journals share a common axis, that a thread is correctly positioned from a shoulder or that a sleeve will provide the required clearance or interference fit.
Typical CNC turned parts include:
- Motor and rotor shafts
- Locating and guide pins
- Sleeves, bushings and spacers
- Threaded inserts, nuts and studs
- Connectors, fittings and couplings
- Valve, nozzle and fluid-control components
- Flanges, end covers and rotational housings
- Long, slender Swiss-turned components
- Multi-feature turn-mill parts
- Engineering-plastic turned parts
This page covers components manufactured to customer drawings, not replacement parts for CNC lathes.
Custom CNC Turned Parts We Manufacture
Each product family is manufactured to project-specific drawings, materials, dimensions, fits, surface finishes and production requirements.

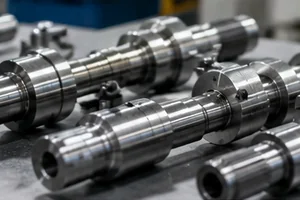

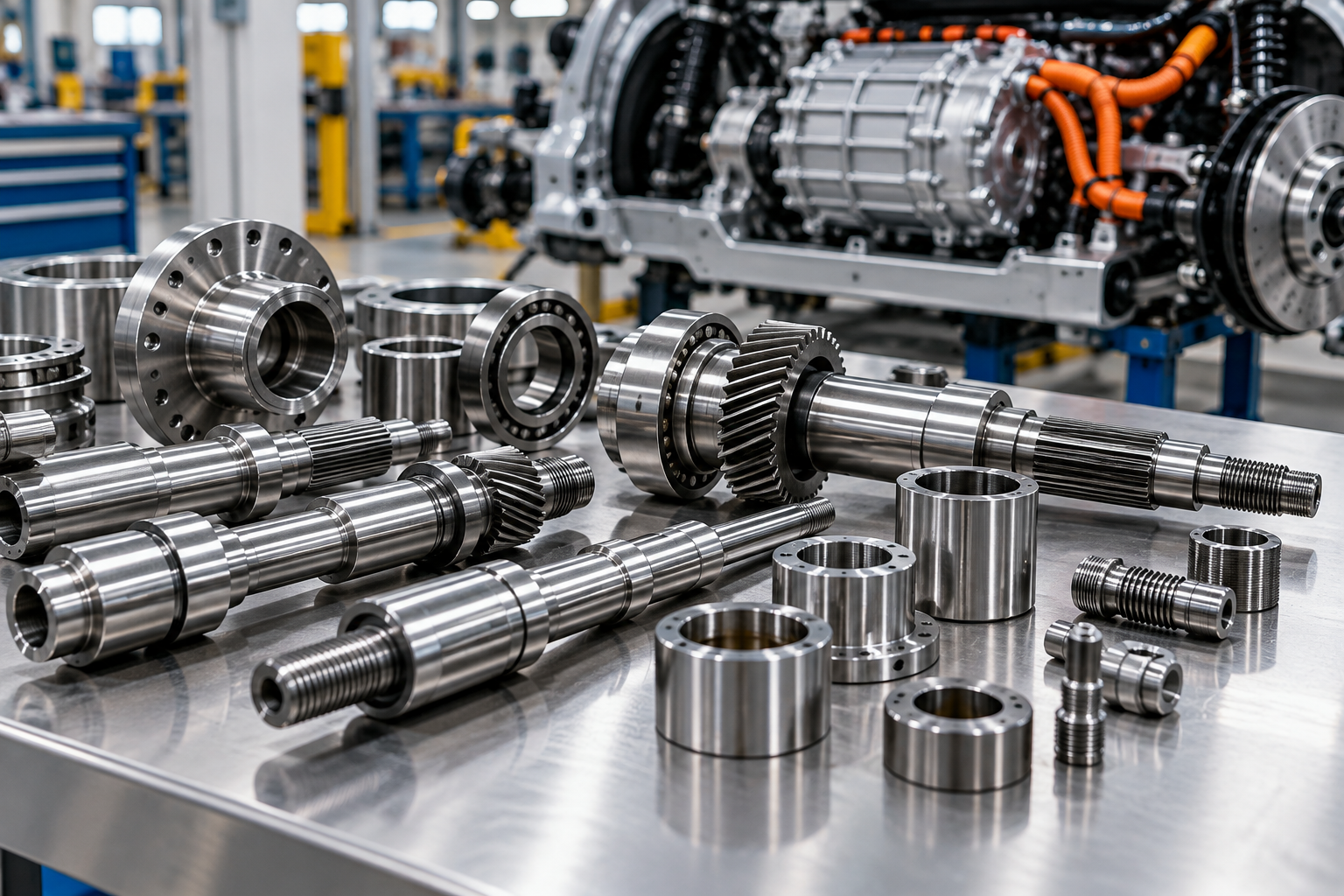

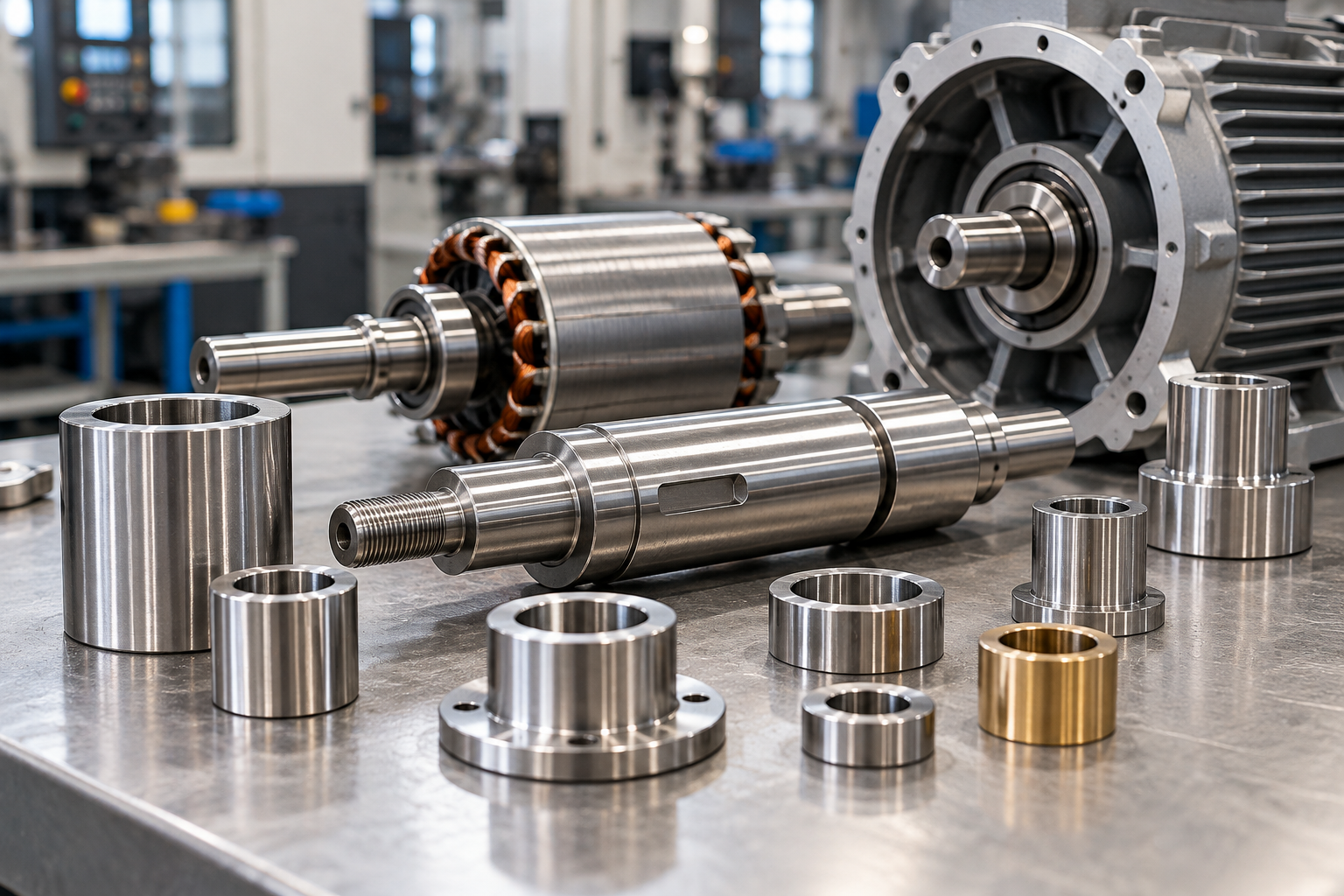

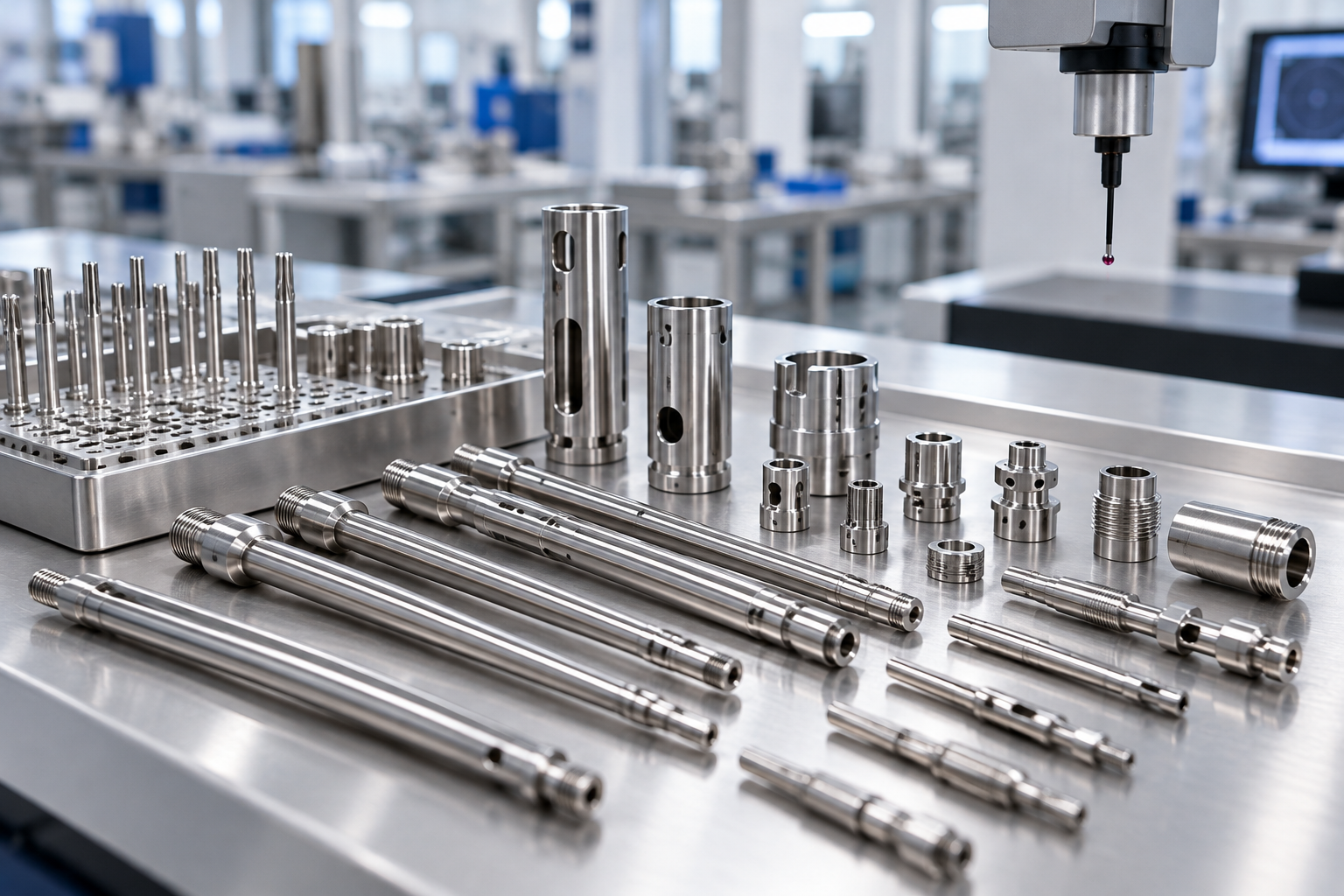

Precision Shafts & Motor Shafts
Stepped shafts, motor shafts, rotor shafts, guide shafts and grooved shafts for rotating or motion assemblies.

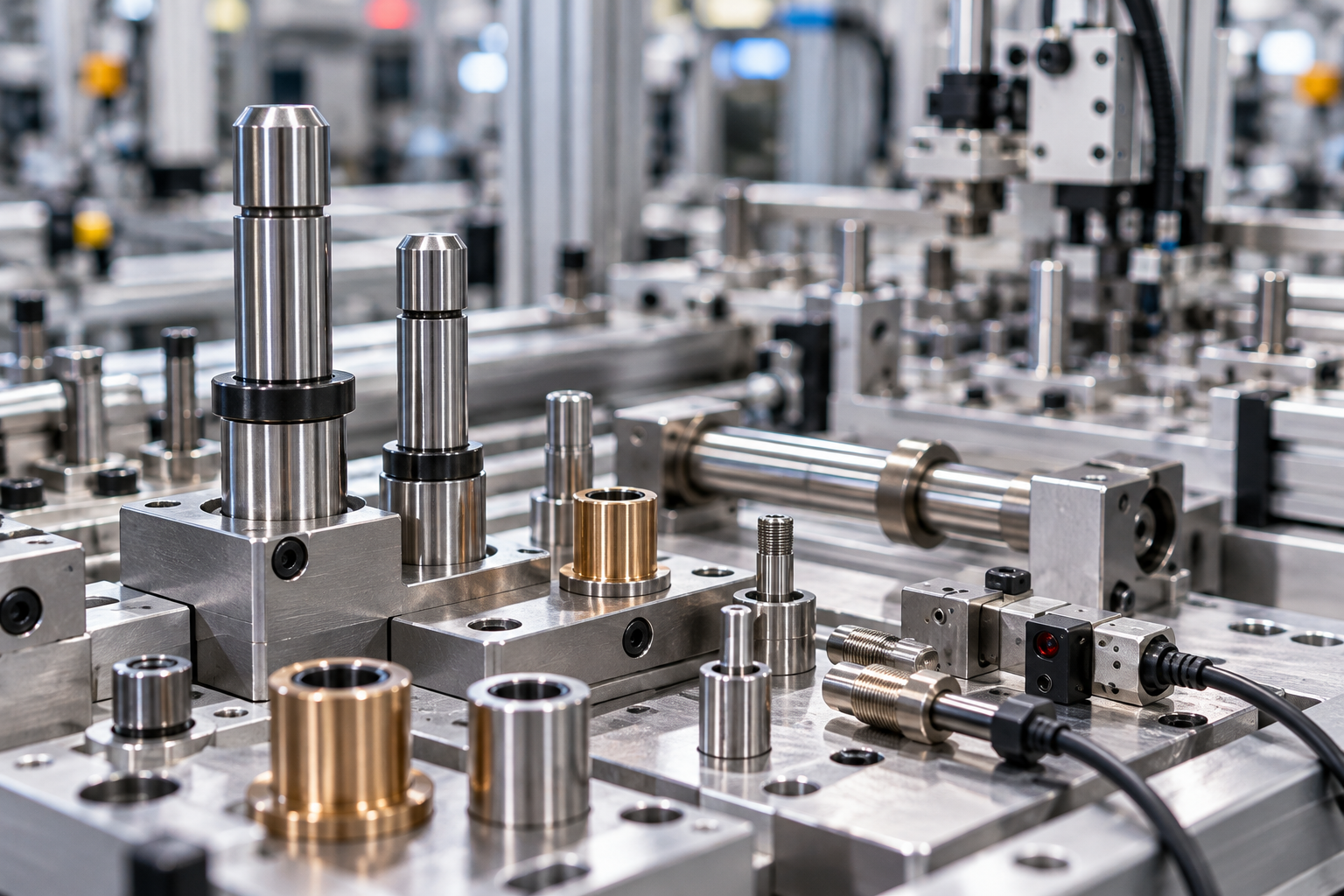

Pins & Locating Components
Locating pins, guide pins, connector pins, pivot pins and custom precision pins for assembly, fixtures and motion systems.
Sleeves, Bushings & Spacers
Shaft sleeves, bearing bushings, spacer sleeves and thin-wall cylindrical components for support, wear control, alignment or spacing.

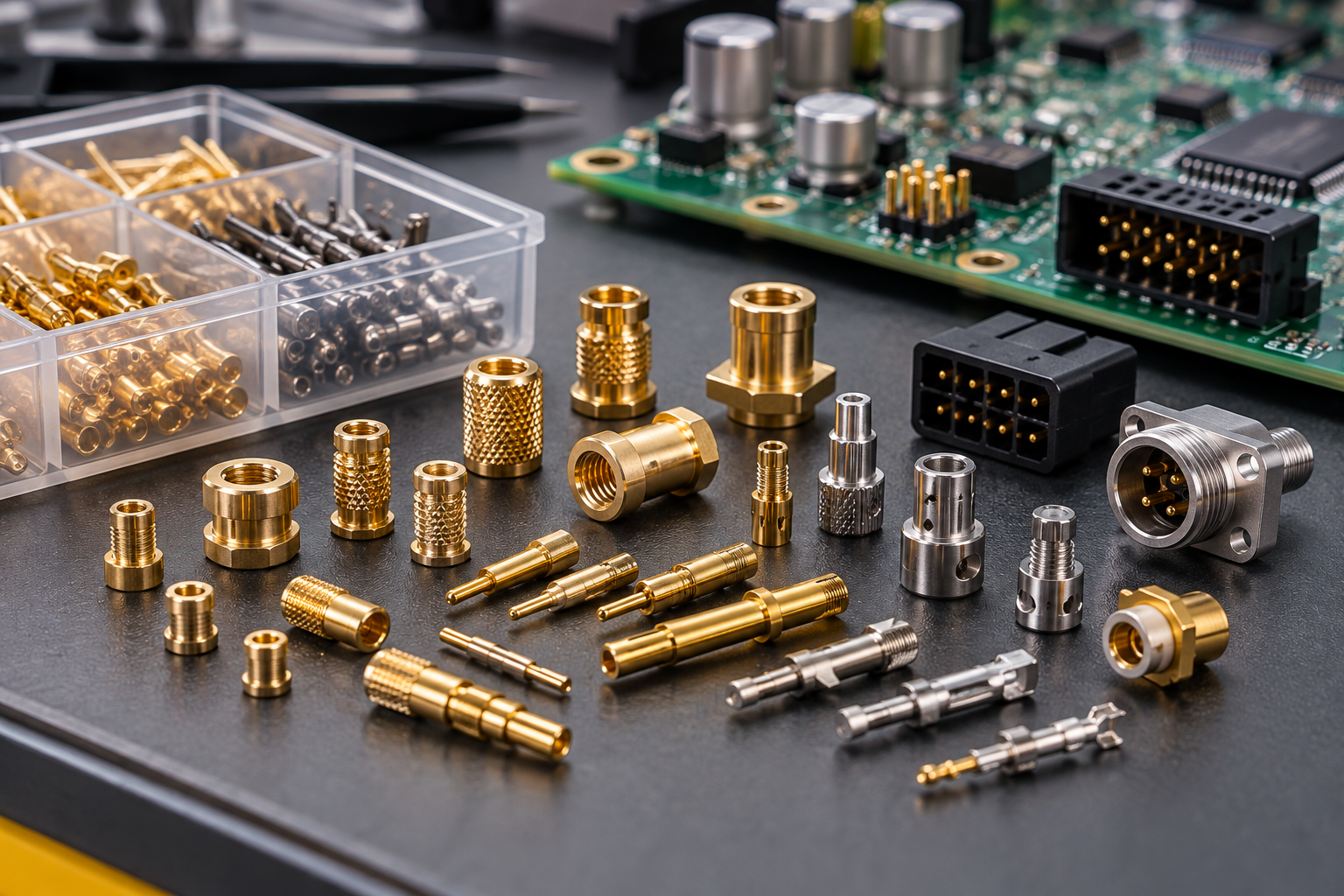

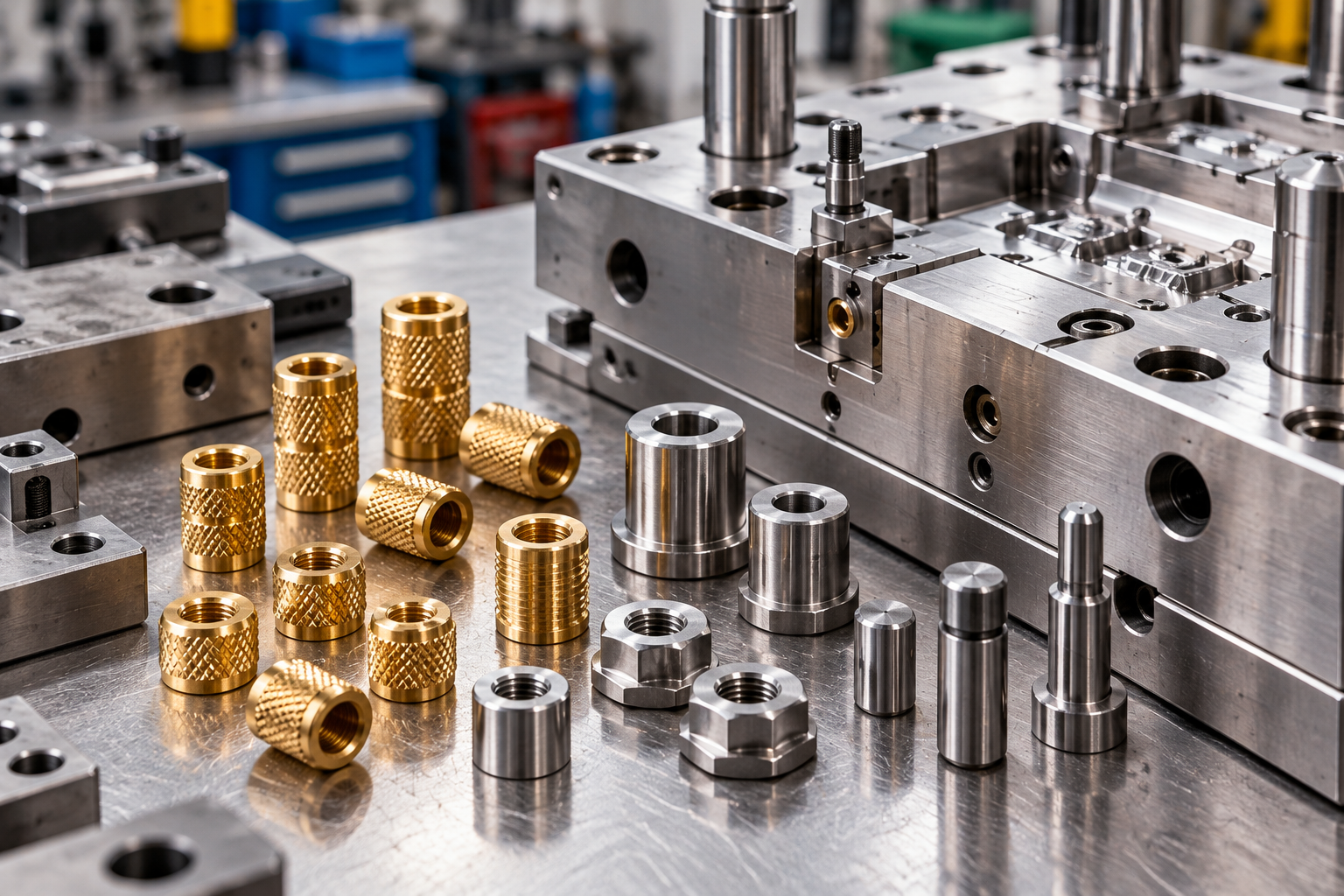

Threaded Inserts, Nuts & Studs
Knurled inserts, injection-molding inserts, blind or through-threaded nuts, studs and custom threaded components.

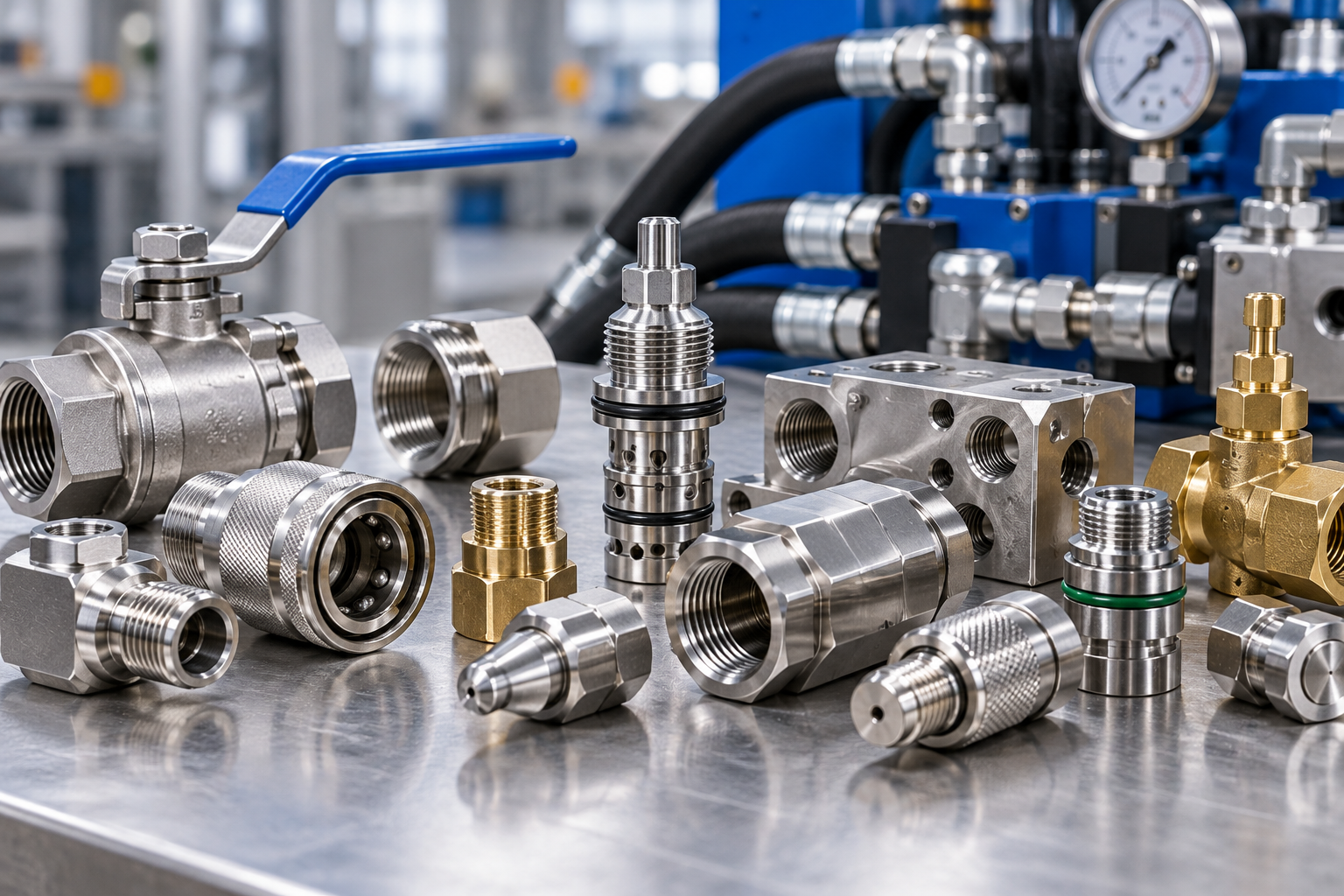

Connectors, Fittings & Couplings
Power connectors, pipe fittings, adapters, couplings and threaded connection components.
Valve, Nozzle & Fluid-Control Components
Valve stems, rotational valve components, nozzles, pneumatic parts and fluid connections.
Flanges, End Covers & Rotational Housings
Flanges, motor end covers, sensor shells and cylindrical housings with bores, shoulders or mounting interfaces.

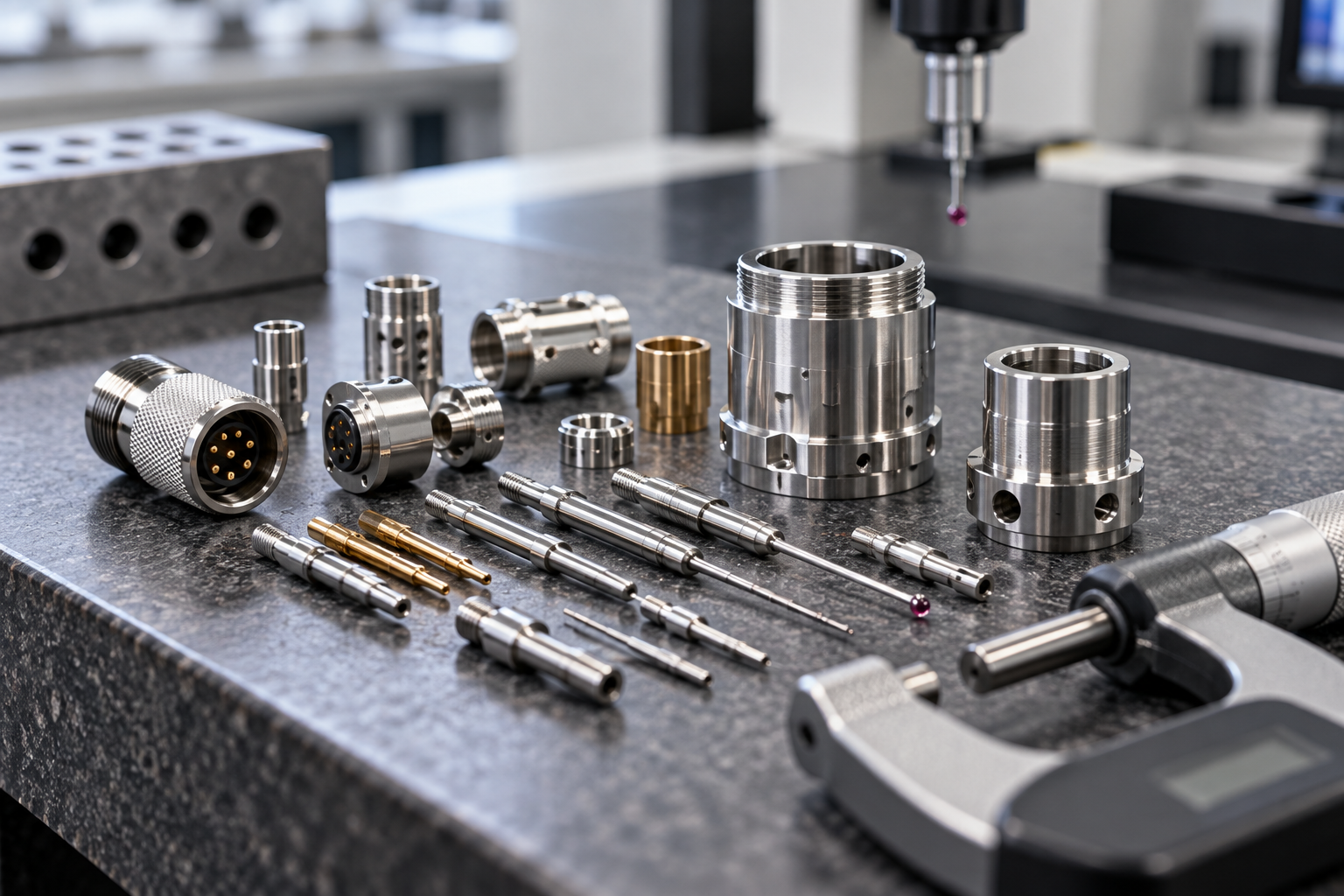

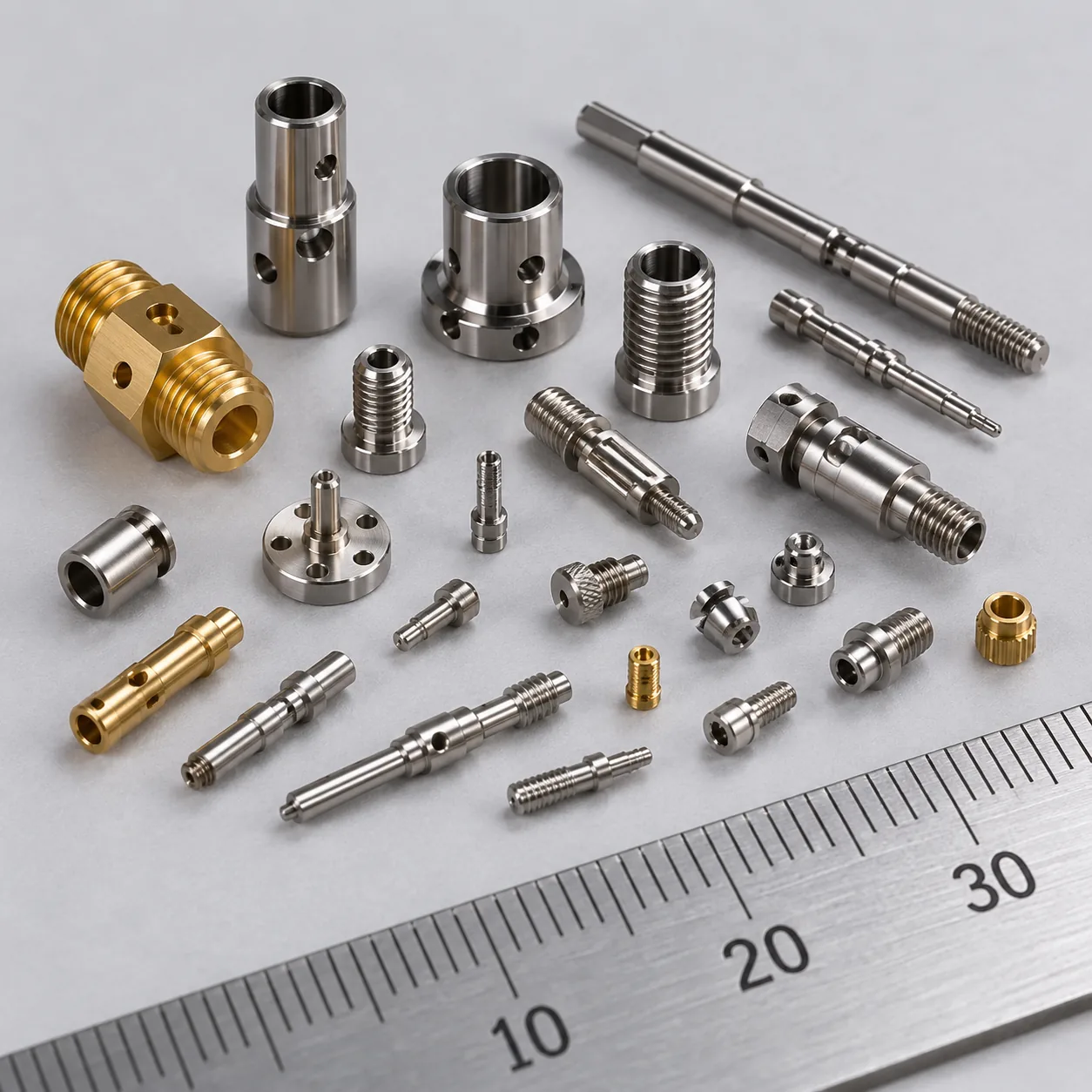

Long & Slender Swiss-Turned Parts
Micro shafts, slender pins, probes and small-diameter connector components whose length-to-diameter ratio requires additional support.

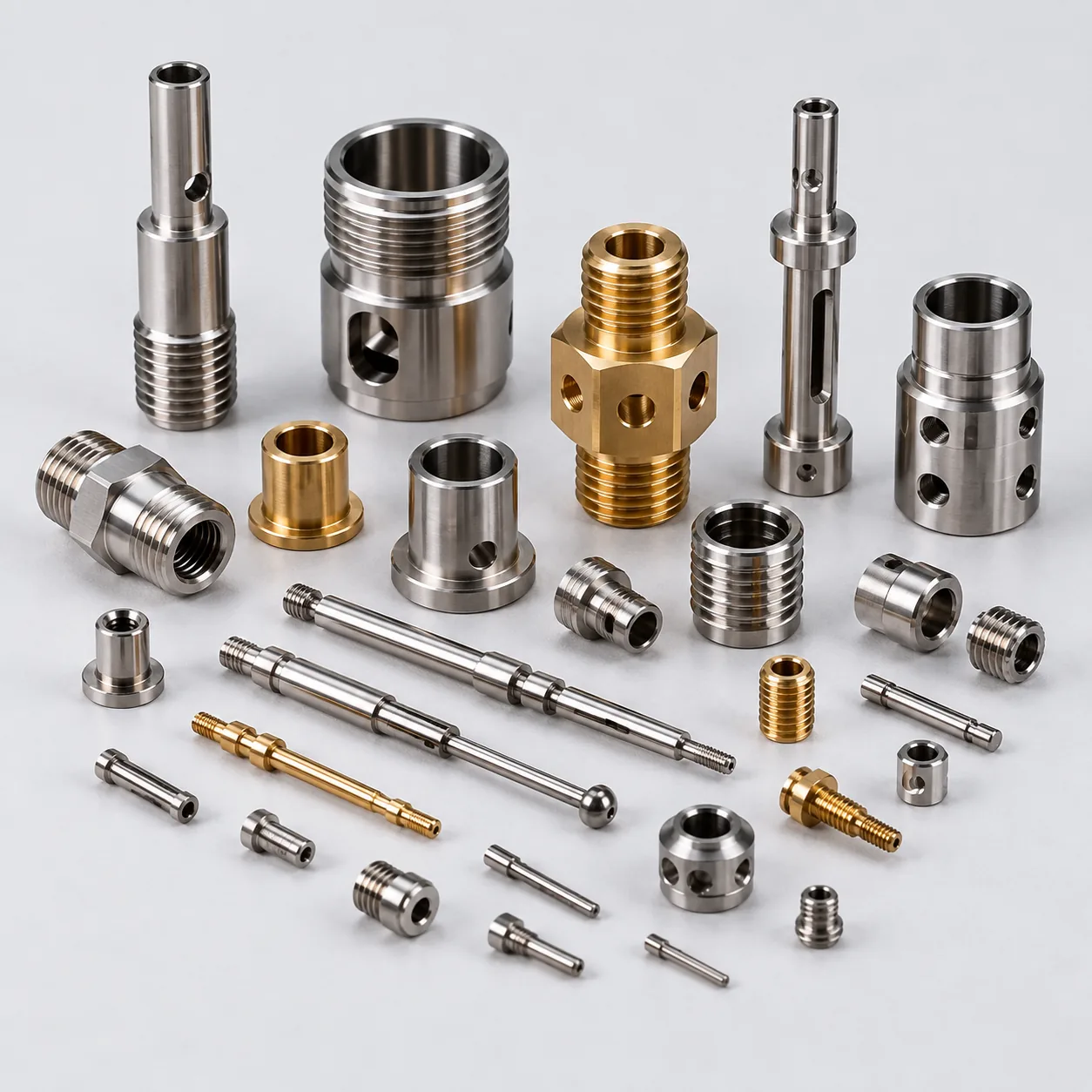

Turn-Mill Multi-Feature Parts
Round components that also contain flats, slots, cross holes, offset holes or features at controlled angular positions.
Engineering Plastic Turned Parts
POM, PTFE and other suitable engineering-plastic bushings, sleeves, spacers and insulating components.
A Turned Part Works as a System of Related Features
The function of a turned component often depends on relationships between several features. Checking each diameter separately may not verify the final assembly condition.

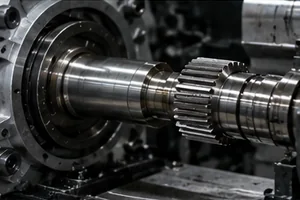

Bearing Journal
Controls the fit and rotational support of a bearing, bushing or mating component.
Shoulder Face
Provides axial location and may need to remain perpendicular to the rotational datum.
Internal Bore
Controls guidance, clearance, flow or fit relative to the outside diameter.
Thread and Thread Relief
Secures the assembly and must remain correctly positioned relative to shoulders and mating surfaces.
Groove
Locates retaining rings, seals or other components along the axis.
Cross Hole or Flat
Introduces an off-axis relationship that may require turn-mill processing or a controlled secondary setup.
Identify which feature establishes the datum and which relationships control function before deciding how the component will be inspected.
Common Problems When Sourcing CNC Turned Parts
Issue 1: Diameter Drift Causes Poor Fit
An outside or inside diameter can move during production because of tool wear, cutting heat or setup changes. The result may be loose assembly, excessive interference or incoming inspection rejection.
Issue 2: Related Journals Lose a Common Axis
Several diameters may pass individual size checks while runout or concentricity between the journals remains outside the functional requirement.
Issue 3: Threads Pass Size Checks but Fail Assembly
Thread entry, effective depth, shoulder position, relief and burr condition can prevent a mating fastener from seating correctly.
Issue 4: Shallow Knurling Reduces Insert Retention
A threaded insert may have the correct thread but still rotate or pull out when the knurl pattern does not suit the installation method.
Issue 5: Thin-Wall Parts Deform
Sleeves, bushings, connectors and plastic parts may become oval, show uneven wall thickness or move after unclamping.
Issue 6: The Approved Sample Is Not Repeated
Tool condition, bar stock, offsets, fixtures and deburring can change between a prototype and later production.
A useful production plan connects each risk to a specific machining, deburring or inspection response.
Manufacturing Decisions Start Before the Bar Stock Turns
Define the Functional Fit
Confirm whether the component requires clearance, transition or interference with its mating part.
Identify the Rotational Datum
Determine which diameter, bore or center axis controls related journals, shoulders and off-axis features.
Select the Machining Route
Match standard turning, Swiss machining, automatic lathe production or turn-mill processing to the geometry and quantity.
Plan Burr and Finish Control
Review thread exits, grooves, cross holes, thin edges, plating and post-finish dimensions before production.
Match Inspection to Function
Use the appropriate method for diameter, thread fit, runout, concentricity, wall thickness and surface condition.
Choose the Turning Process From Geometry and Quantity
The correct process depends on diameter, length-to-diameter ratio, off-axis features, tolerance relationships, quantity and setup requirements.
| Process Route | Best-Fit Geometry | Main Selection Reason | Typical Parts |
|---|---|---|---|
| CNC Turning | General cylindrical parts with diameters, bores, shoulders, grooves and threads | Flexible for prototypes, varied geometry and drawing-based components | Shafts, sleeves, bushings, fittings and flanges |
| Swiss Machining | Small-diameter, long or slender components | Supports the workpiece close to the cutting area and can reduce deflection on suitable parts | Micro shafts, slender pins, probes and connector components |
| Automatic Lathe Machining | Mechanically repetitive small turned parts suited to stable batch processing | Can be efficient where part geometry, material and quantity justify dedicated setup | Bushings, inserts, nuts, pins and simple hardware |
| Turn-Mill Machining | Cylindrical components with flats, slots, cross holes or controlled angular features | Combines rotational and off-axis features while reducing unnecessary transfers | Ported fittings, complex shafts and multi-feature connectors |
| Secondary Milling or Drilling | Turned parts requiring selected holes, flats or slots after the main turning operation | Used when combined processing is not required or when the feature plan favors a separate setup | Flanged parts, cross-drilled sleeves and selected fittings |
The final route is confirmed after reviewing the drawing, material, quantity, critical relationships and inspection requirements.
Diameter Alone Does Not Define Turning Quality
Outside Diameter and Inside Diameter
These dimensions establish basic size and fit, but they do not prove that the two surfaces share the required axis.
Clearance and Interference Fit
The correct tolerance direction depends on how the shaft, pin, sleeve or bushing must assemble and operate.
Runout
Runout checks how consistently a surface rotates around the defined datum axis.
Concentricity and Common-Axis Relationships
Related journals or bores may need to maintain a controlled rotational relationship across the part.
Roundness
A diameter can average within tolerance while the local form remains slightly oval.
Straightness
Long shafts and guide components may require control over their full functional length.
Shoulder Position and Perpendicularity
Shoulders locate bearings, gears, seals and other components along the axis.
Tolerance note: A standard machining tolerance around ±0.01 mm may be reviewed for suitable features. Actual capability depends on material, geometry, feature size, wall thickness, process, finishing and inspection method.
Materials for Custom CNC Turned Parts
Material selection affects machinability, tolerance stability, thread quality, corrosion resistance, conductivity, wear, weight and finishing.
| Material | Available Grades or Types | Typical Turned Parts | Buyer Watch Points |
|---|---|---|---|
| Aluminum | 6061, 6063, 7075, 2024 and 5052 where suitable | Lightweight shafts, sleeves, housings, spacers and connectors | Surface marking, thin-wall stability, strength requirement and anodizing allowance |
| Stainless Steel | 303, 304, 316L and 316F where suitable | Shafts, sleeves, threaded components, fittings and instrument parts | Machining difficulty, tool wear, heat, internal burrs and thread quality |
| Brass and Copper | H57, H59, H62, H65, C3602, C3604 and project-specific copper | Threaded inserts, connectors, conductive pins, fittings and bushings | Thread condition, knurling, softness, plating, conductivity and appearance |
| Free-Machining Steel | 1214 and 1215 | Pins, spacers, studs, sleeves and repeat turned hardware | Corrosion protection, plating allowance and application environment |
| Engineering Plastics | POM, PTFE and selected project-specific plastics | Bushings, spacers, sleeves, guides and insulating parts | Clamping deformation, thermal condition, moisture behavior, thread design and dimensional stability |
Confirm the exact material grade and relevant condition rather than specifying only a general material family.
Plan Surface Finishing Around the Final Fit
Surface finishing can change appearance, corrosion resistance, wear behavior and final dimensions. Threads, bearing fits, dowel diameters, sealing areas and electrical contact surfaces should be reviewed before finishing.
As-Turned Finish
Retains normal machining marks where the application does not require additional cosmetic treatment.
Deburring and Cleaning
Removes loose burrs, sharp edges and machining residue from threads, grooves, holes and internal areas.
Polishing
Improves suitable surfaces where smoother appearance or contact condition is required.
Anodizing
Used on suitable aluminum components. Coating buildup must be considered around fitted diameters and threads.
Passivation
Used on suitable stainless-steel components where the specified process and application require it.
Nickel Plating
Used on suitable steel, brass or copper components for project-specific surface requirements.
Zinc Plating
A corrosion-protection option for suitable steel components.
Black Oxide
A finishing direction for suitable steel parts where the operating environment permits.
Closing checklist: Confirm whether the drawing dimensions apply before or after finishing and identify all surfaces that require masking or post-finish inspection.
Threads, Knurls and Burrs Must Match the Assembly Method
Thread Fit
Internal and external threads should be checked against the specified thread standard and fit requirement. Entry chamfers, effective depth and relief position also affect assembly.
Go/No-Go Inspection
A suitable thread or bore gauge helps verify whether the functional size remains within the permitted limits.

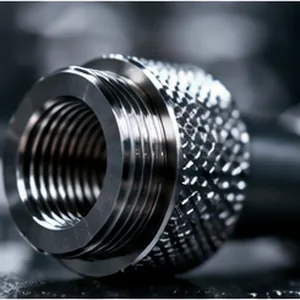

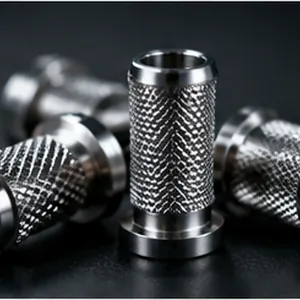

Knurled Inserts
Knurl pattern, outside diameter, installation hole and insertion method work together. Correct thread size alone does not prove that an insert will resist rotation or pull-out.

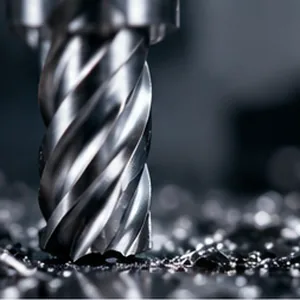

Thread Exits and Grooves
Burrs at thread runouts, retaining grooves or thin edges can block assembly or damage mating parts.

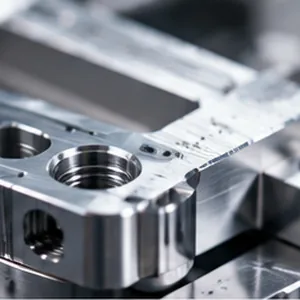

Cross Holes and Internal Residue
Chip fragments or burrs inside connectors, fittings and valve-related components can interfere with flow, sealing or electrical assembly.
Define the thread standard, thread depth, installation method, mating component and burr-sensitive areas on the drawing or RFQ.

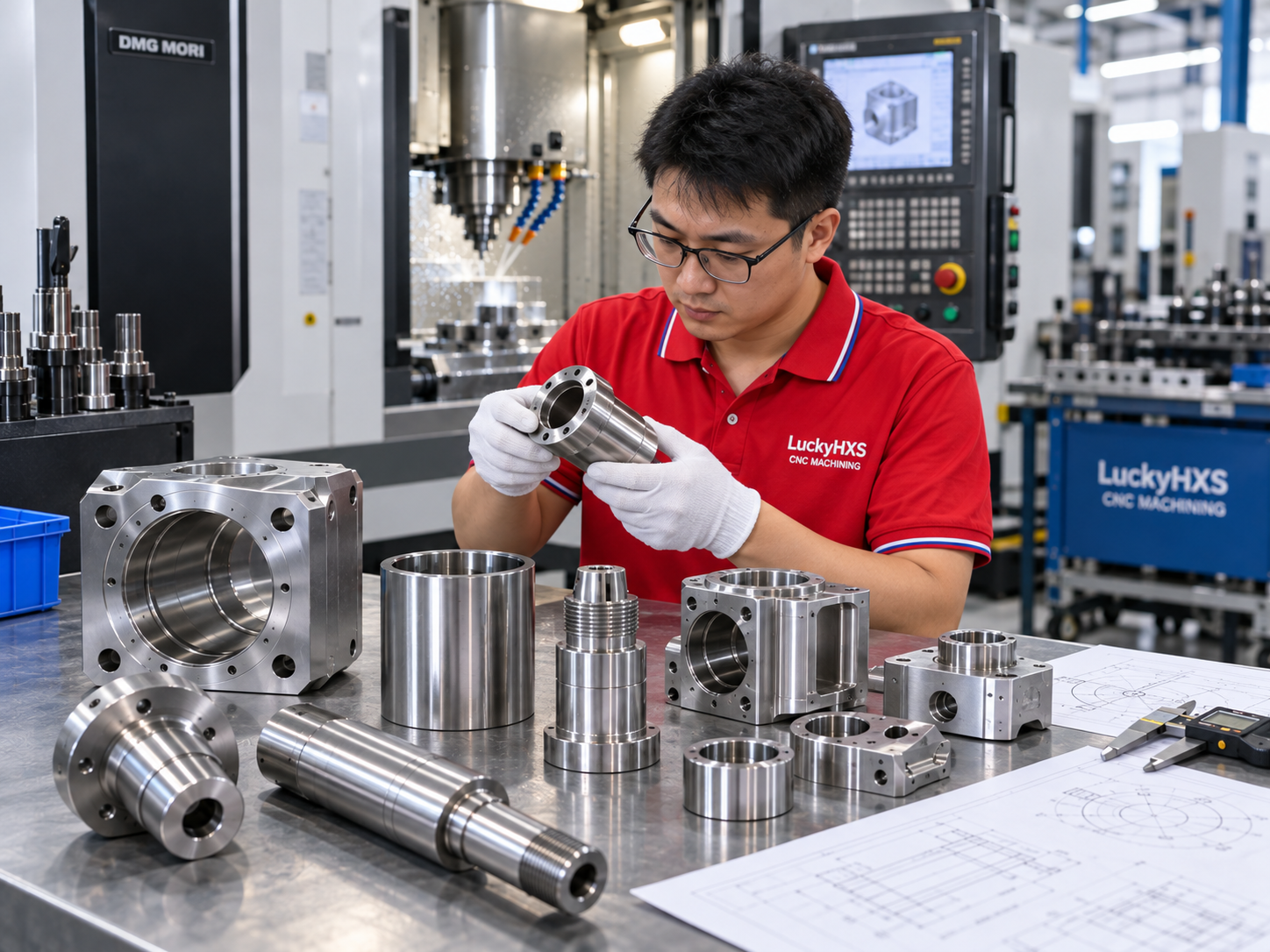

Thin-Wall and Slender Parts Need a Different Turning Plan
Thin-Wall Sleeves
High clamping force can distort the part during machining, while released stress can change the shape after unclamping.
Uneven Wall Thickness
The outside and inside diameters may pass separate checks while bore offset creates an uneven wall.
Long Small-Diameter Shafts
Deflection increases as the unsupported length grows. Diameter measured near the chuck may not represent the far end.
Plastic Turned Components
POM and PTFE require careful clamping and cutting because material behavior differs from metal.
Deep Bores
Tool reach, chip removal and inspection access become more difficult as bore depth increases.
DFM review points:
- Functional wall thickness
- Length-to-diameter ratio
- Required straightness
- ID-to-OD relationship
- Clamping surfaces
- Surface-finish requirement
- Inspection access
Any proposed design or tolerance adjustment requires customer approval before production.

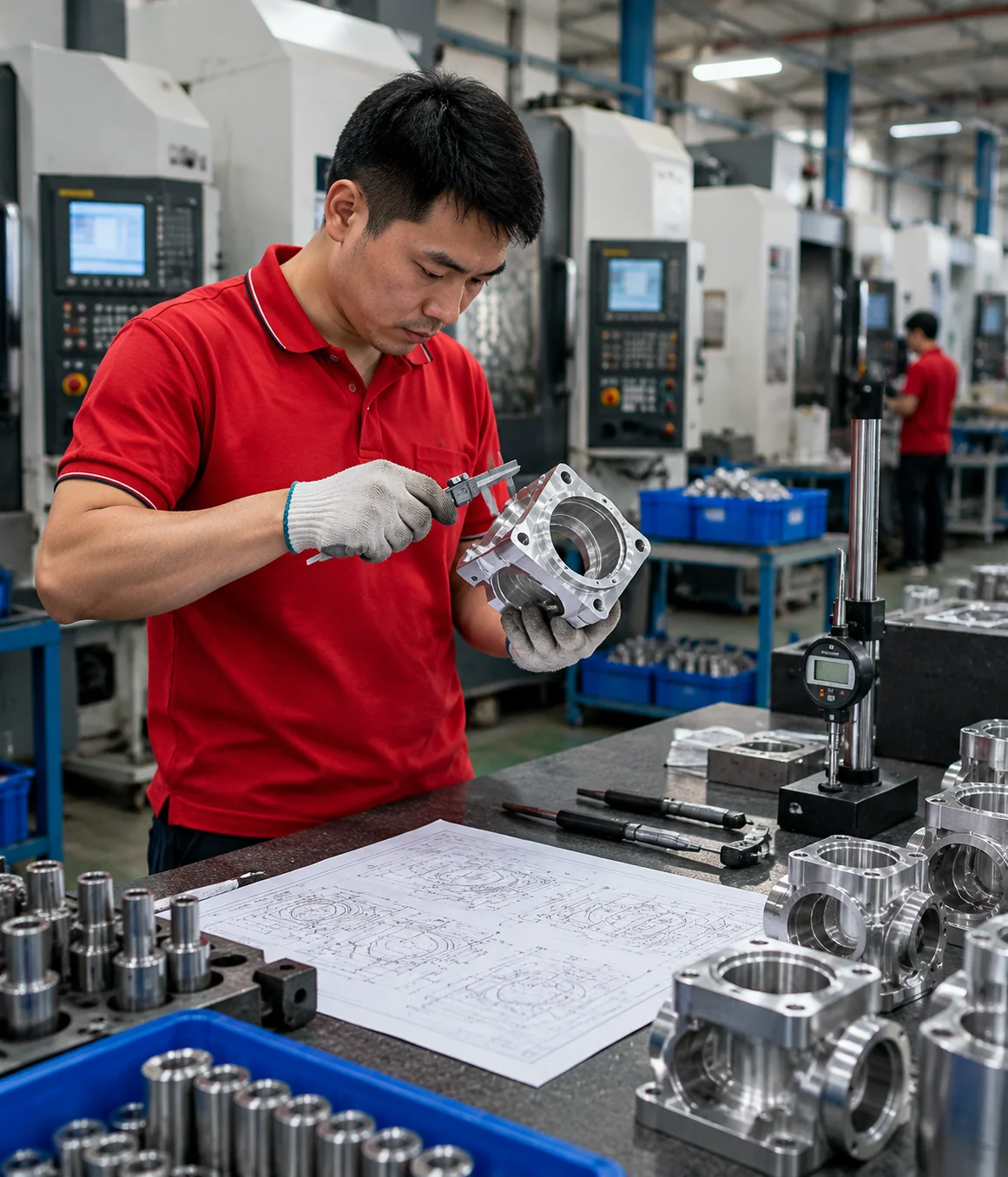

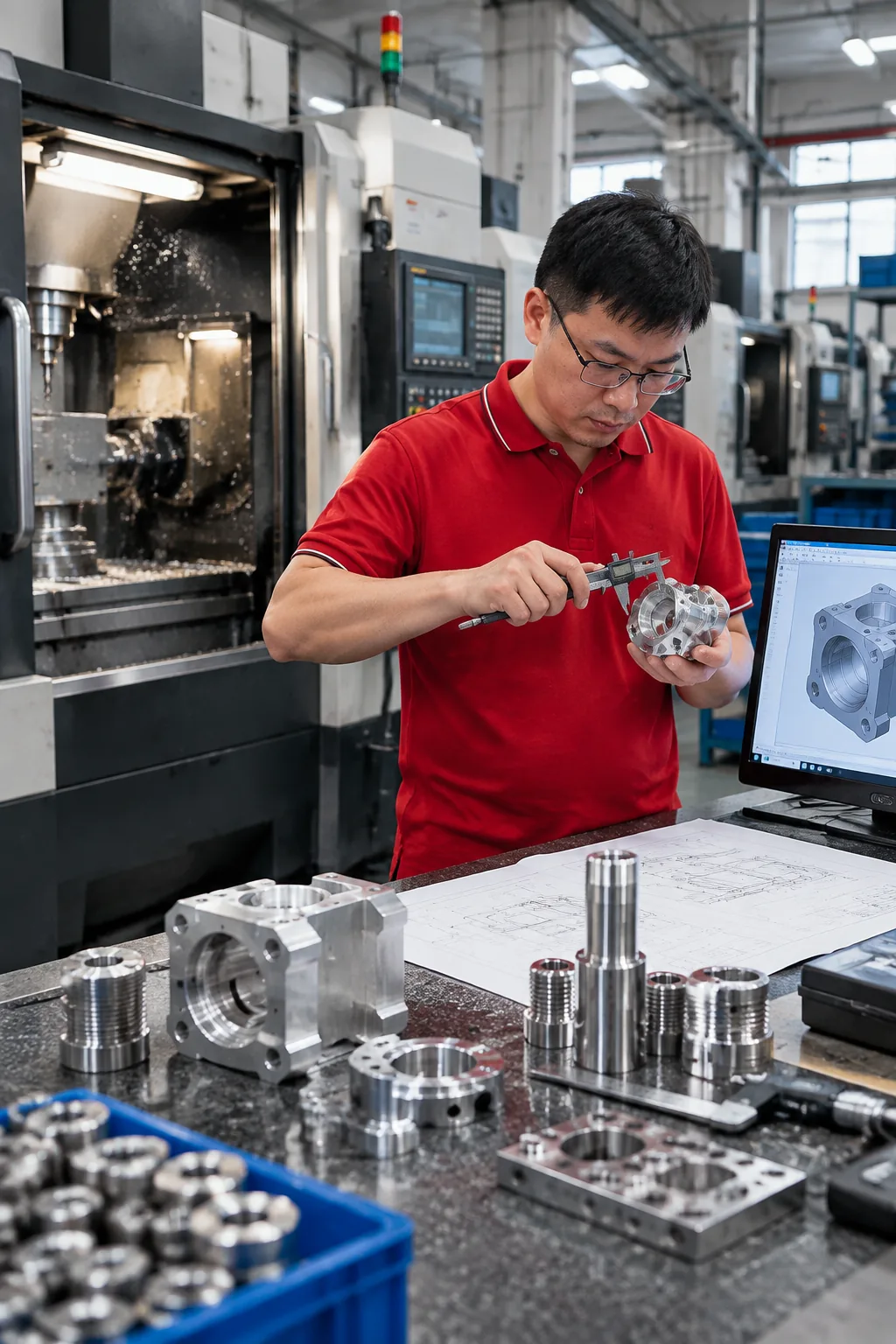

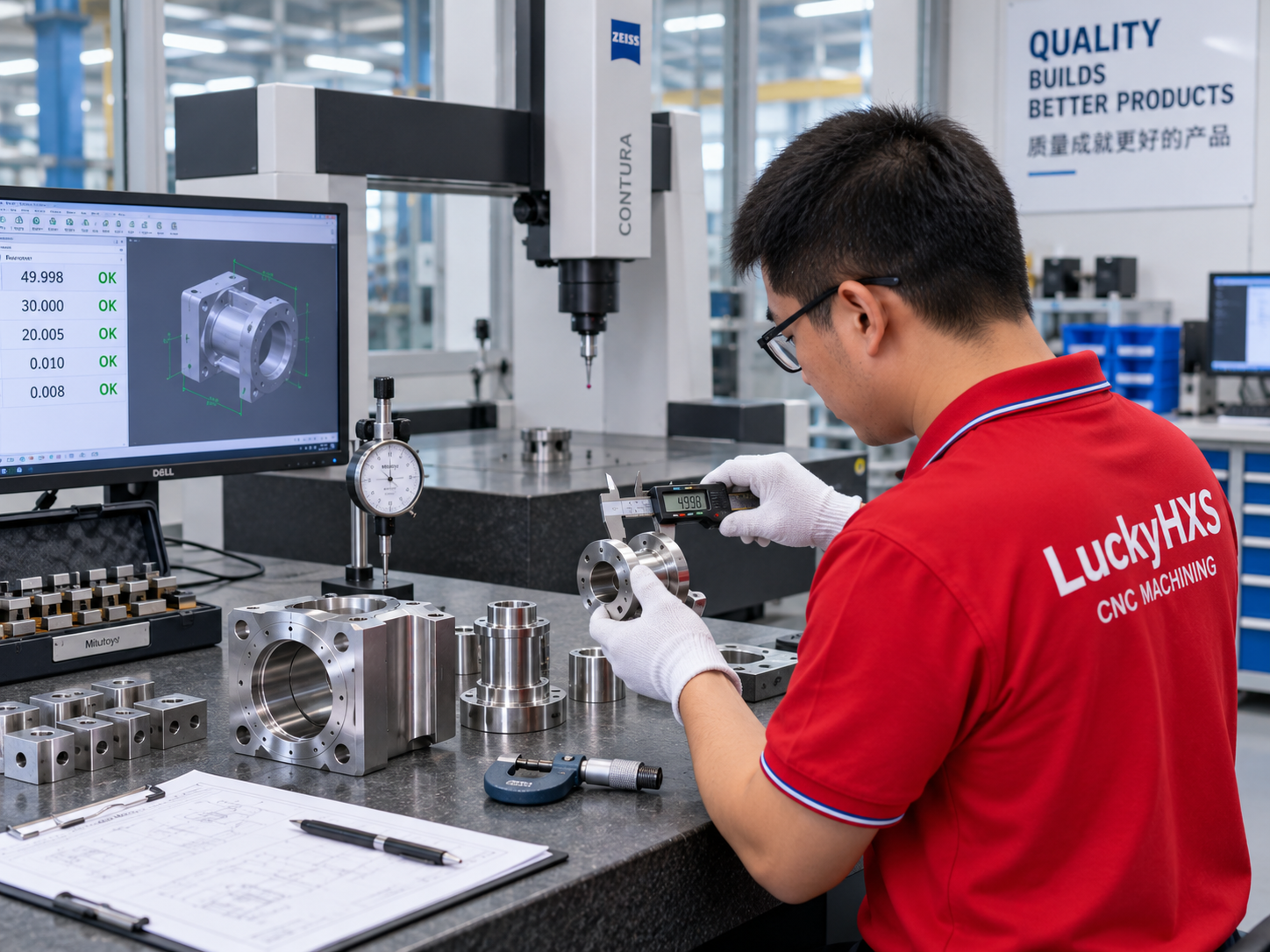

Inspection Methods Should Follow Feature Functionality
Different features require different inspection methods. Measuring two diameters does not automatically verify runout, concentricity, or the relationship between a thread and a shoulder.

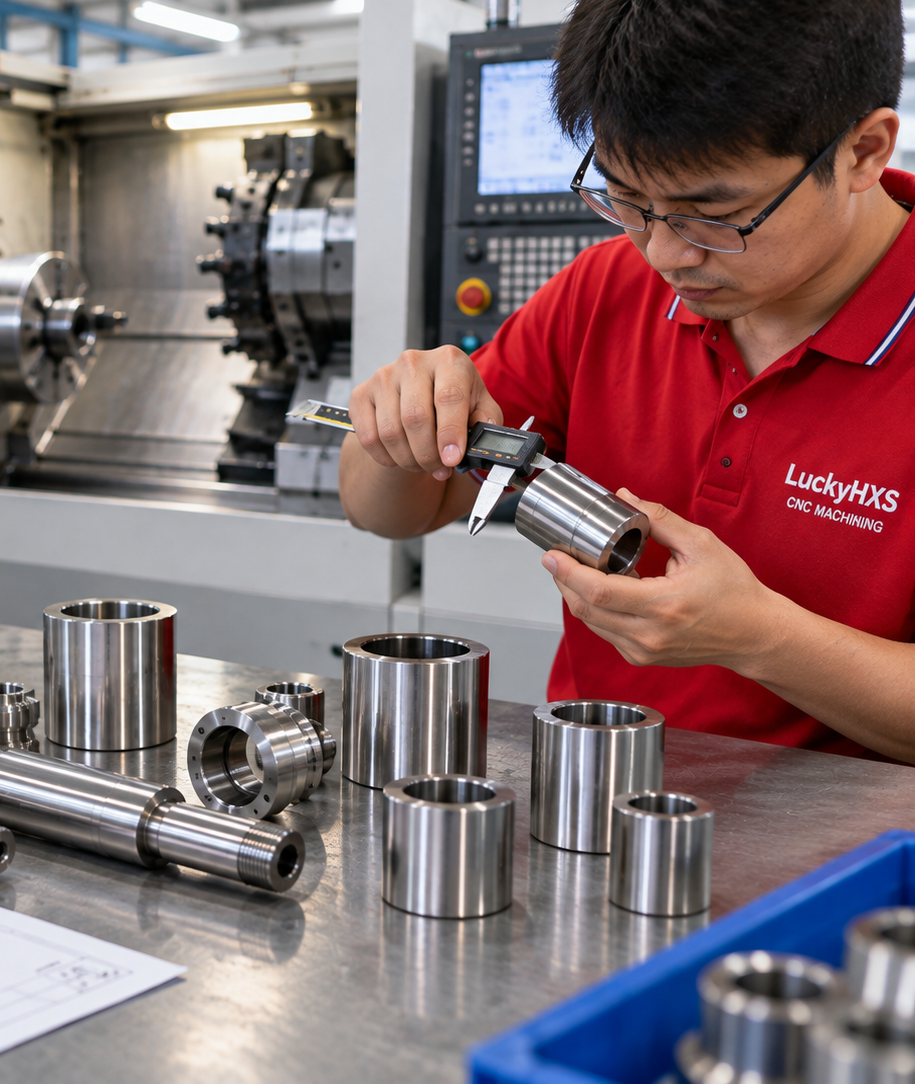

OD, ID, and Length
Use micrometers, calipers, bore gauges, pin gauges, or other suitable dimensional tools.
Thread Fit
Use the specified thread plug or ring gauge where applicable.

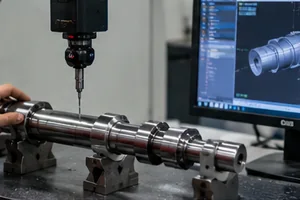

Runout
Use a dial-indicator setup referenced to the agreed datum.
Multi-Feature Relationships

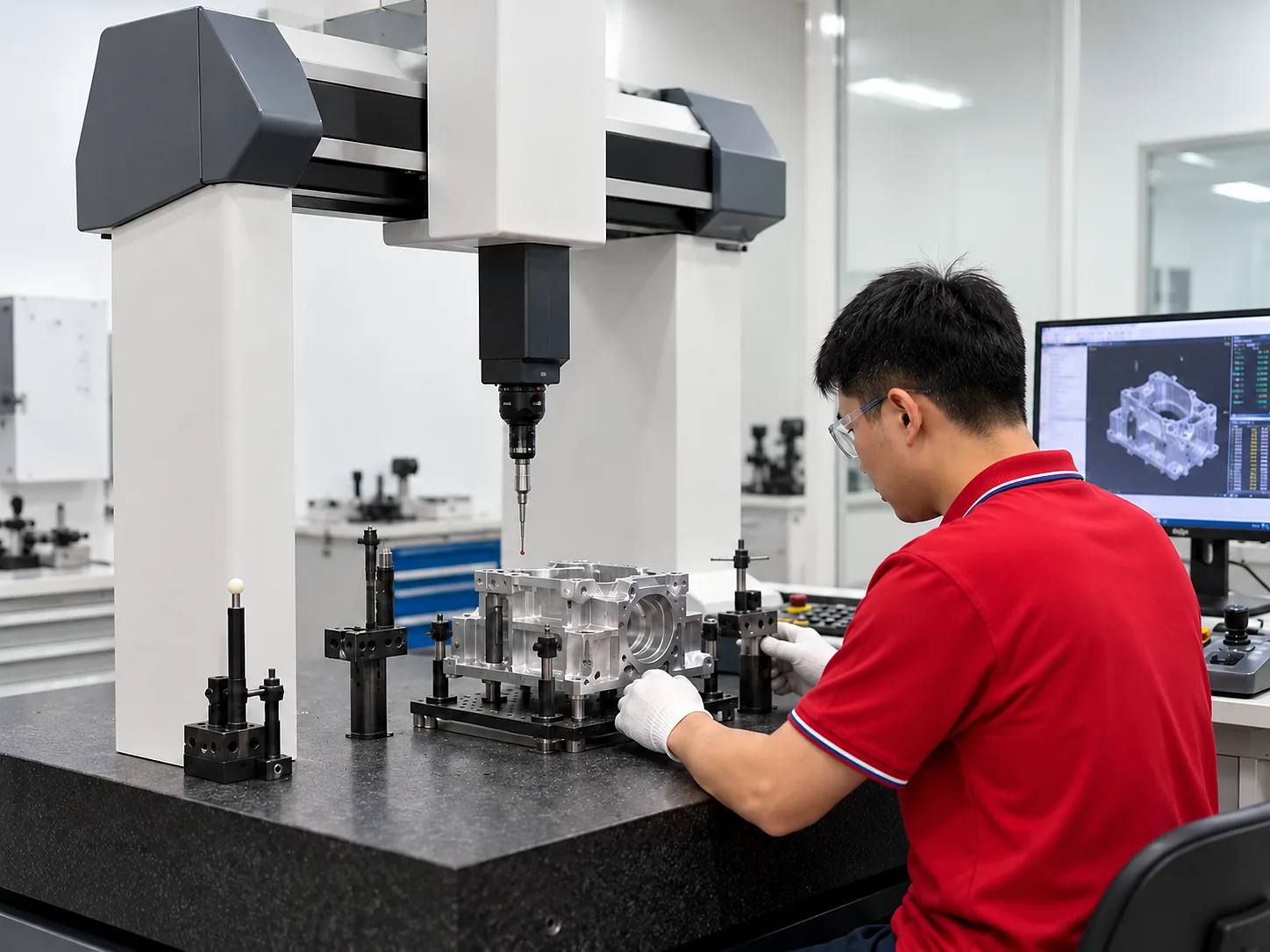

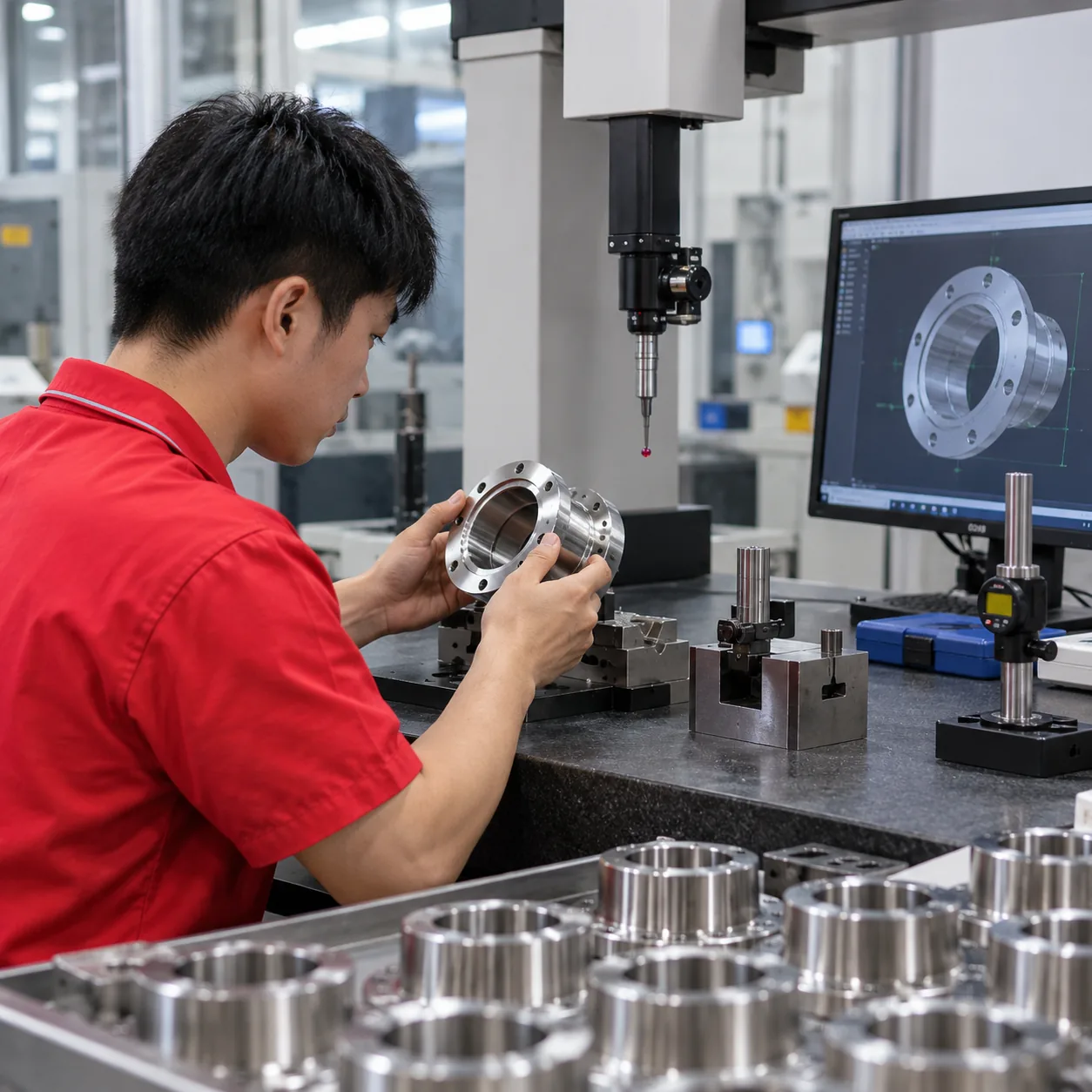

Use coordinate or optical inspection where suitable for related positions and off-axis features.
Small Profiles and Burrs
Use magnified or optical inspection for thread exits, grooves, cross holes, and small edges.
Surface Condition
Inspect the required surface state before and, where necessary, after finishing.
The quotation and inspection plan should identify features critical to assembly, rather than treating every dimension as equally important.
From First Article to Repeat CNC Turning Production
Drawing and Revision Review
Confirm that the quotation, CAD model and production requirement refer to the same revision.
Material Confirmation
Verify the specified material family, grade and relevant finishing requirements.
Process and Datum Planning
Select the turning route, workholding reference and critical feature relationships.
Programming and Setup
Prepare tools, offsets, workholding and process sequence around the approved drawing.
First Article Verification
Inspect the agreed critical diameters, fits, threads, runout and feature relationships.
In-Process Checks
Monitor dimensions and conditions affected by tool wear, cutting heat, burr formation or material variation.
Finishing and Final Inspection
Review post-finish dimensions, surface condition and protected functional areas.
Repeat-Order Requirement Control
Use the approved revision and retained critical-feature requirements as the reference for future production.
An attractive sample is not enough. Repeat production depends on carrying the approved requirements into the process and inspection plan.

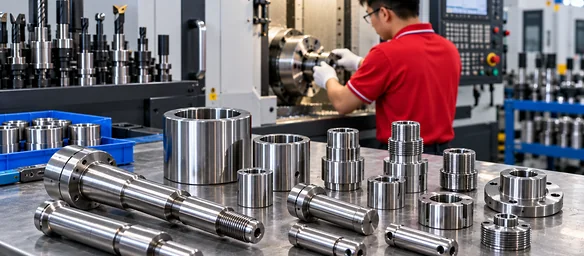

Drawing-Based CNC Turning You Can Review
Geometry-Led Process Selection
LuckyHXS evaluates standard turning, Swiss machining, automatic lathe production and turn-mill processing according to the component’s geometry and quantity.
Functional Fit Review
Diameter, bore, shoulder, thread and mating requirements are considered together where they control assembly.
Material and Finish Coordination
Available metals and engineering plastics can be reviewed together with suitable deburring and finishing requirements.
Feature-Based Inspection
Inspection methods are selected around size, fit, runout, thread condition, wall thickness and surface requirements.
Prototype and Repeat-Order Support
Drawing-based samples and repeat manufacturing can follow the approved revision and critical-feature requirements.
Project Communication
Material, quantity, finish, drawing revision and inspection expectations remain visible from quotation through production review.
Supplier confidence begins with a clear explanation of how the drawing will be machined and verified.
An Anonymized Customer Case and Application Examples
The examples below show why fit direction, thread condition and rotational relationships should be confirmed before a turned part enters production.
A Mating Dimension With the Wrong Tolerance Direction
A micro-electromechanical project initially showed a mating dimension with a +0.05 mm requirement. The customer later confirmed that the functional requirement was -0.05 mm. The total 0.10 mm difference would have prevented the components from assembling correctly.
A tolerance value must be reviewed together with its direction, mating component and intended fit. Producing the original drawing accurately would still have created an unusable assembly.
Knurled Brass Insert for Injection Molding
A threaded brass insert must combine thread fit with the correct outside diameter, knurl pattern and installation method. Thread inspection alone does not confirm resistance to rotation or pull-out after molding.
Thread gauge condition, knurl geometry, burr removal and installation-hole relationship.
Motor Sleeve and Shaft Fit
A motor sleeve may require a controlled bore, outside diameter and relationship between the two axes. Separate ID and OD measurements do not confirm even wall thickness or concentric assembly.
Fit requirement, ID-to-OD relationship, wall stability and suitable bore inspection.
Custom Turned Components for Industrial Assemblies
Motors and Motion Systems
Typical parts: motor shafts, rotor shafts, sleeves, bushings and spacers.
Key concerns: bearing fit, runout, straightness and common-axis relationships.
Electronics and Electrical Hardware
Typical parts: brass inserts, conductive pins, connectors and small precision hardware.
Key concerns: conductivity, plating, thread condition, burrs and connector alignment.
Industrial Automation
Typical parts: locating pins, guide shafts, bushings, fixtures and sensor components.
Key concerns: repeatable fit, alignment, wear and assembly access.
Fluid-Control Equipment
Typical parts: fittings, couplings, valve stems, nozzles and ported components.
Key concerns: thread fit, sealing faces, internal burrs and cleanliness.
Injection Molding and Tooling
Typical parts: knurled brass inserts, threaded nuts, sleeves and locating components.
Key concerns: insert retention, knurl geometry, thread quality and molding interface.
Precision Instruments
Typical parts: small shafts, probes, connector bodies, spacers and cylindrical housings.
Key concerns: alignment, surface condition, small-feature inspection and material selection.
Automotive and Electric Equipment
Typical parts: shafts, sleeves, threaded components, fittings and rotational hardware.
Key concerns: assembly repeatability, material, finishing and production consistency.
Medical-Equipment Components
Typical parts: instrument shafts, sleeves, pins and equipment interfaces.
Key concerns: drawing-defined dimensions, burr control, material requirements and requested inspection documents. Final regulatory suitability remains the customer’s responsibility.
What Drives the Cost of a CNC Turned Part?
There is no universal price for a made-to-drawing turned component. A quotation reflects the work required to machine, finish and verify the specific part.
Material
Raw-stock cost, grade, bar size, condition and machinability affect the starting cost.
Part Diameter and Length
Stock size, unsupported length and material removal influence machine selection and cycle time.
Geometry
Deep bores, thin walls, several shoulders, grooves, tapers and small features increase manufacturing difficulty.
Threads and Knurls
Internal threads, external threads, special thread forms and knurling require additional tooling and inspection.
Off-Axis Features
Cross holes, flats and slots may require turn-mill processing or an additional setup.
Tolerance and Runout
Tighter fit, runout, straightness or common-axis requirements can increase process and inspection effort.
Quantity
Programming and setup costs are distributed differently between prototypes and repeat production.
Finishing and Inspection
Plating, anodizing, passivation, detailed reports, special gauges and protected packaging affect the final scope.
Cost reduction should remove unnecessary machining effort without weakening the features that control function.
How to Compare CNC Turned Parts Manufacturers
A supplier comparison should examine how each manufacturer converts the drawing into a repeatable process and inspection plan. Machine lists and low unit prices do not provide the complete answer.
-
1
Drawing Review
Can the manufacturer identify functional fits, datums, threads and related features before quoting?
-
2
Process Selection
Can the supplier explain when standard turning, Swiss machining, automatic lathe production or turn-mill processing is appropriate?
-
3
Material Knowledge
Does the supplier confirm the exact grade, material behavior and suitable finishing requirements?
-
4
Rotational Geometry Control
Can the inspection plan address diameter, runout, concentricity, roundness and straightness separately?
-
5
Thread and Burr Control
Does the supplier review thread entry, effective depth, relief, grooves, cross holes and internal cleanliness?
-
6
First Article and Repeat Production
Can the approved drawing revision and critical features be carried into later production?
-
7
Inspection Capability
Are the proposed tools and methods appropriate for the actual feature being verified?
-
8
Total Project Risk
Consider assembly failures, sorting, rework, finishing damage and delayed validation in addition to unit price.
The right manufacturer should make the machining and inspection logic understandable before production begins.
What to Include in a CNC Turning RFQ
A complete RFQ reduces assumptions and helps the manufacturer evaluate process, cost and inspection requirements accurately.
Drawing and Model
- Latest 2D drawing with revision
- 3D CAD model where available
- Units, general tolerances and GD&T
- Critical diameters, bores and shoulders
Threads and Features
- Thread standard, class and effective depth
- Grooves, knurls, tapers and chamfers
- Cross holes, flats and milled features
- Burr-sensitive or cleanliness-critical areas
Material and Finish
- Exact material and grade
- Required material condition where relevant
- Surface finish and plating requirements
- Dimensions that apply after finishing
Quantity and Production Stage
- Prototype or sample quantity
- Expected repeat-order quantity
- Planned volume changes
- Required project schedule
Fit and Inspection
- Mating part or intended fit
- Functional datum
- Runout or concentricity requirement
- Required inspection records
- Packaging needs for protected surfaces
If a requirement is not yet decided, identify it clearly so it can be reviewed before quotation rather than assumed during production.
CNC Turned Parts Buyer Guide
What parts can a CNC turned parts manufacturer produce?
What is the difference between CNC turning and CNC milling?
When should Swiss machining be considered?
What tolerances can be achieved on CNC turned parts?
How are threads inspected?
How do you control runout and concentricity?
Can LuckyHXS support prototypes and repeat orders?
What information is needed for a quotation?
Request a CNC Turned Parts Review
Send your latest drawing, material, quantities, finishing requirements and critical features. The information will be used to discuss the suitable turning route, inspection focus and quotation scope for your custom component.
Tell Us About Your Turned Part
