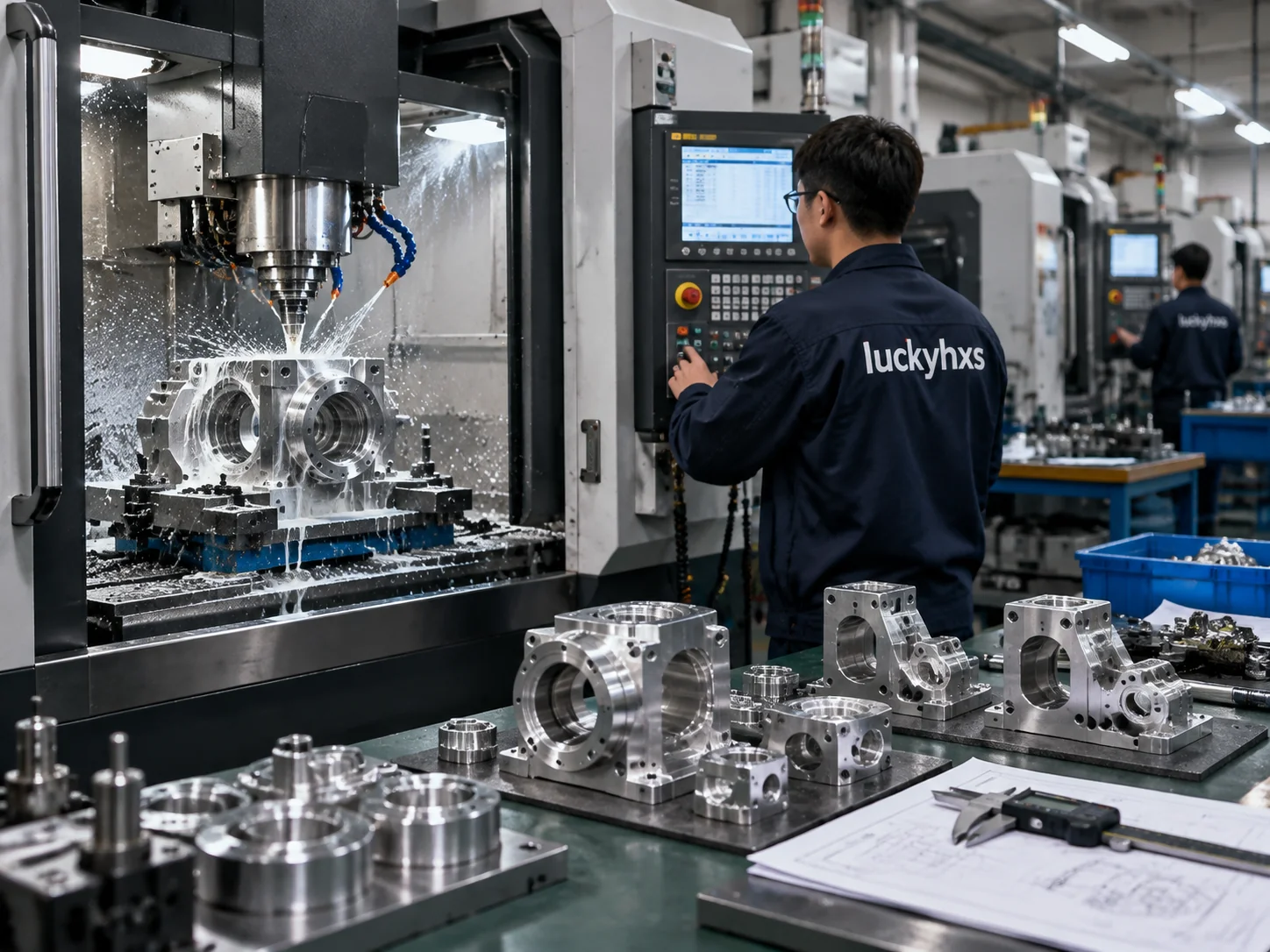

Precision CNC Machining for Robotics & Automation Components
We supply ±0.01mm tolerance machined parts for Robot OEMs, Cobot manufacturers, and Motion System companies. From rigid joint housings to micro-transmission shafts, we ensure assembly-ready precision.
We Do Not Build Robots. We Machine The Precision Components That Make Them Move.
As a dedicated Precision CNC Machined Components Supplier, LuckyHXS partners directly with Robotics and Automation Manufacturers. We understand that a single out-of-tolerance bearing bore can cause harmonic drive failure. Our facility is engineered to deliver mass production stability, ensuring component #5000 matches the sample approval exactly.
Core Machining Capabilities for Robotics
Matching the right machine architecture to your component's geometry, material, and tolerance requirements.

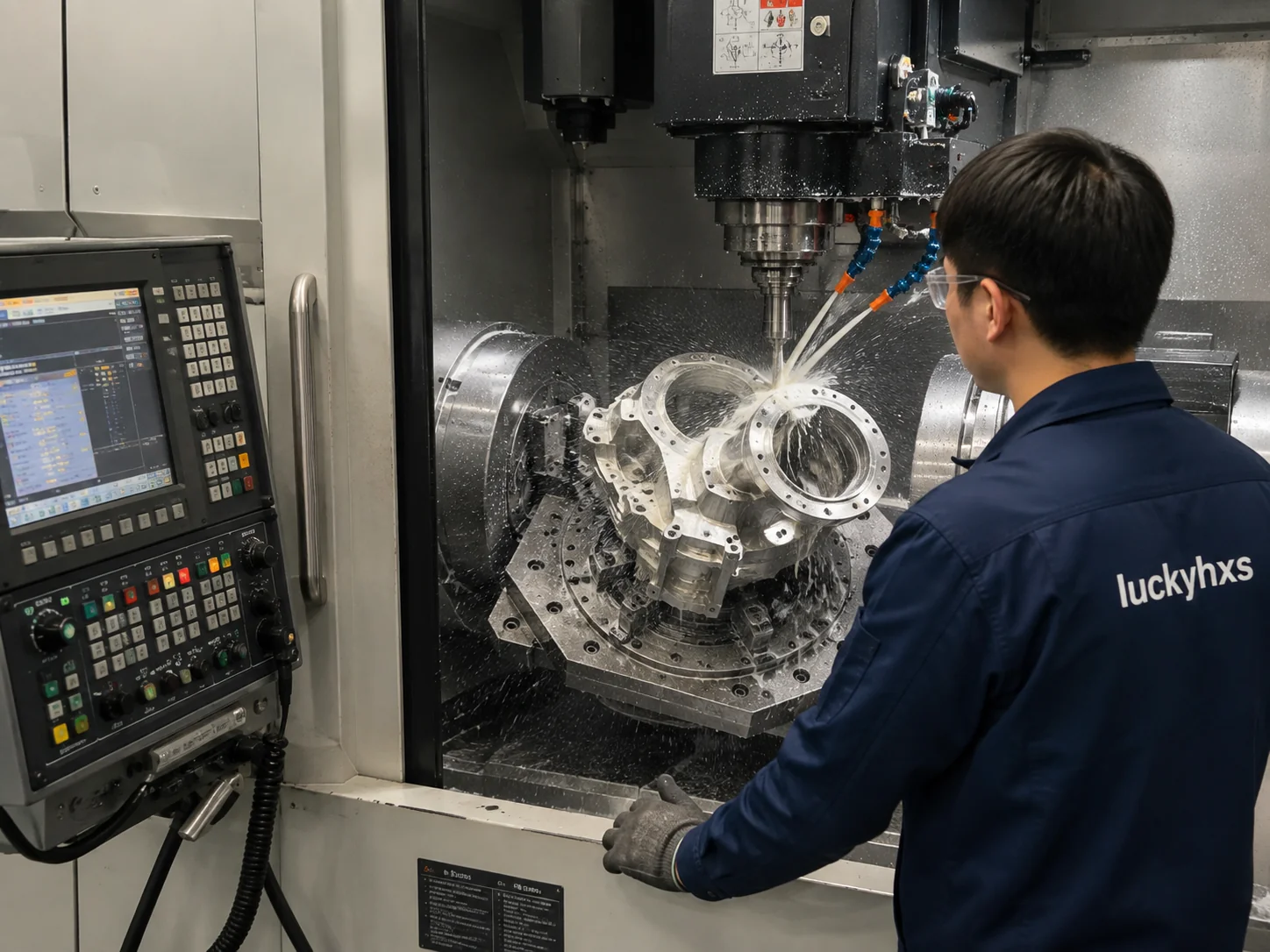

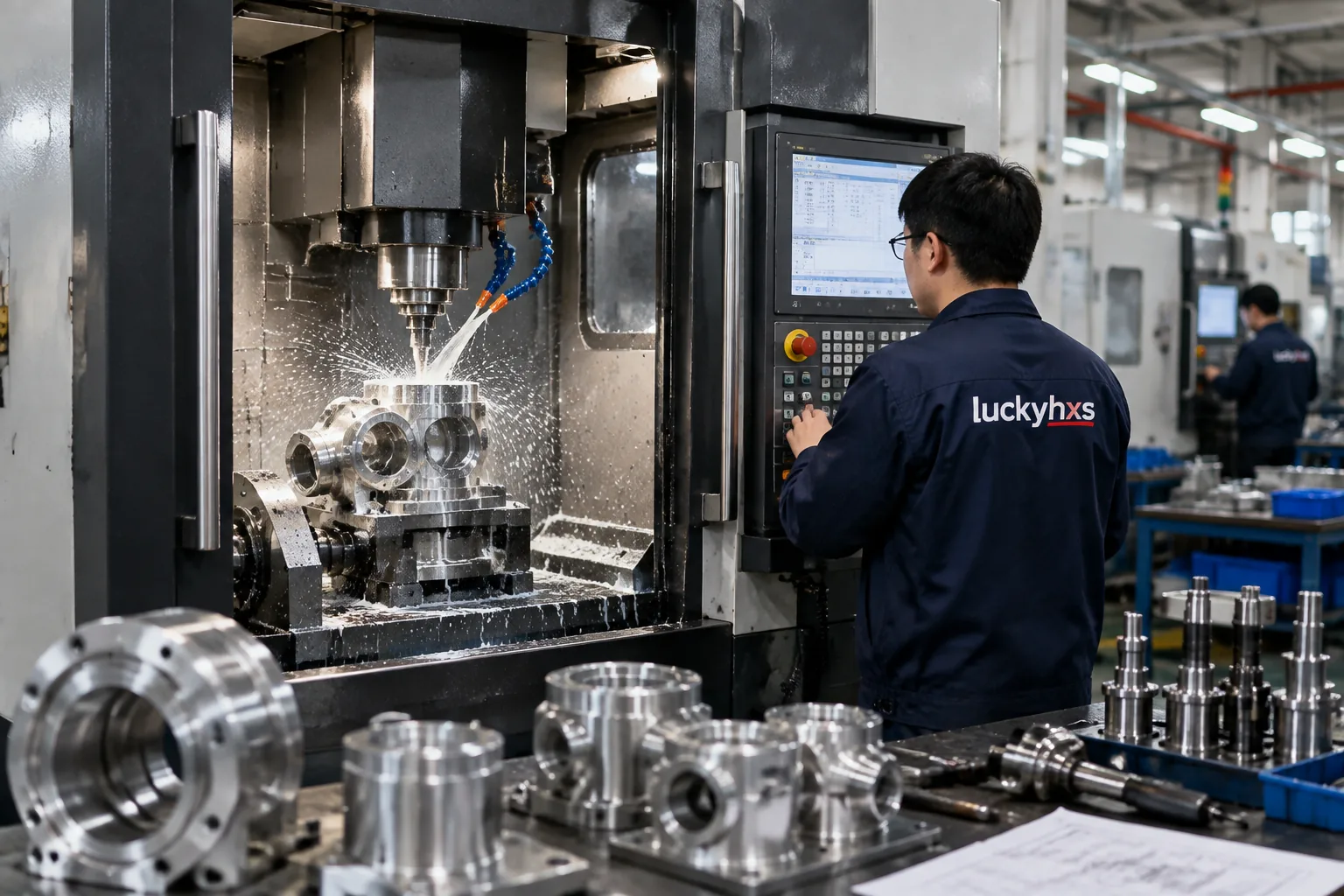

5-Axis CNC Machining
Scenario: Multi-angle robot joint housings.
Constraint: Multiple setups cause tolerance stacking.
Solution: Single-setup 5-axis indexing.
Benefit: Ensures ±0.005mm concentricity across opposing bores for seamless bearing integration.

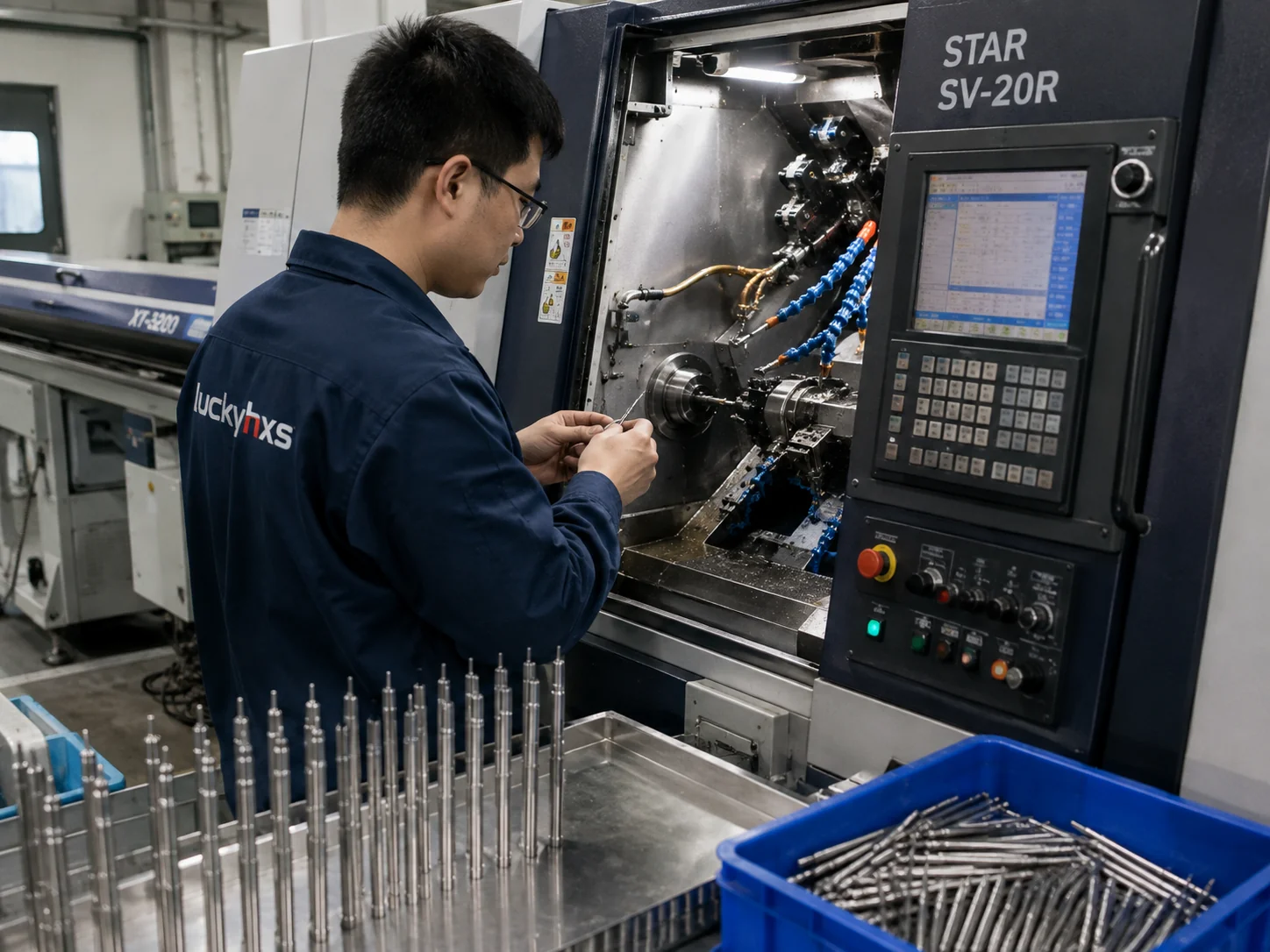

Swiss CNC Machining
Scenario: Long, slender transmission pins.
Constraint: Tool pressure causes material deflection.
Solution: Guide bushing support near the cutting tool.
Benefit: Maintains strict H7/g6 fit tolerances on micro-shafts under Ø20mm.

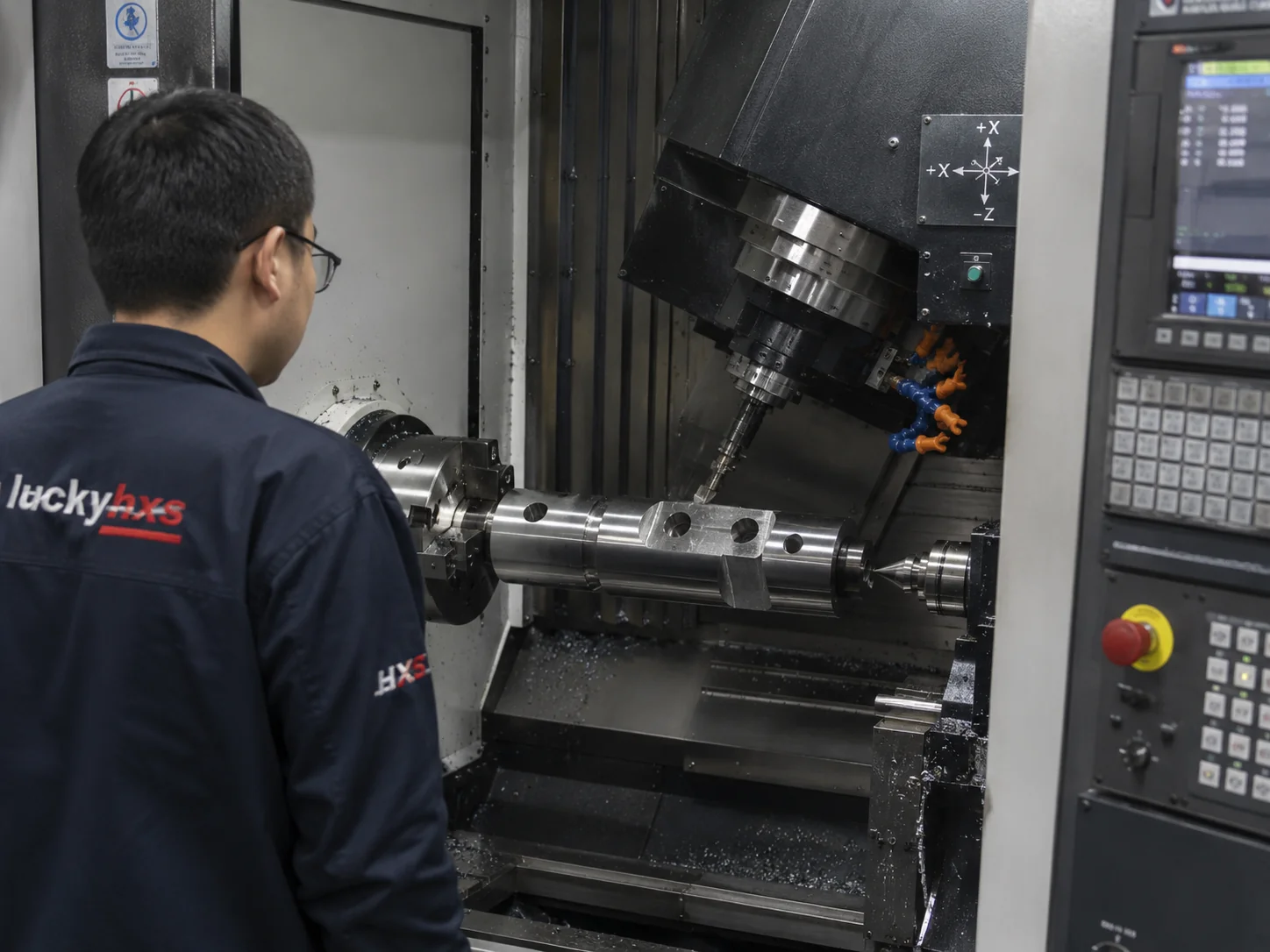

CNC Turn-Mill Centers
Scenario: Cylindrical parts with complex side-milling.
Constraint: Moving parts between lathe and mill wastes time.
Solution: Live tooling on multi-axis lathes.
Benefit: Reduces lead times by 30% for motor housings while improving feature-to-feature alignment.

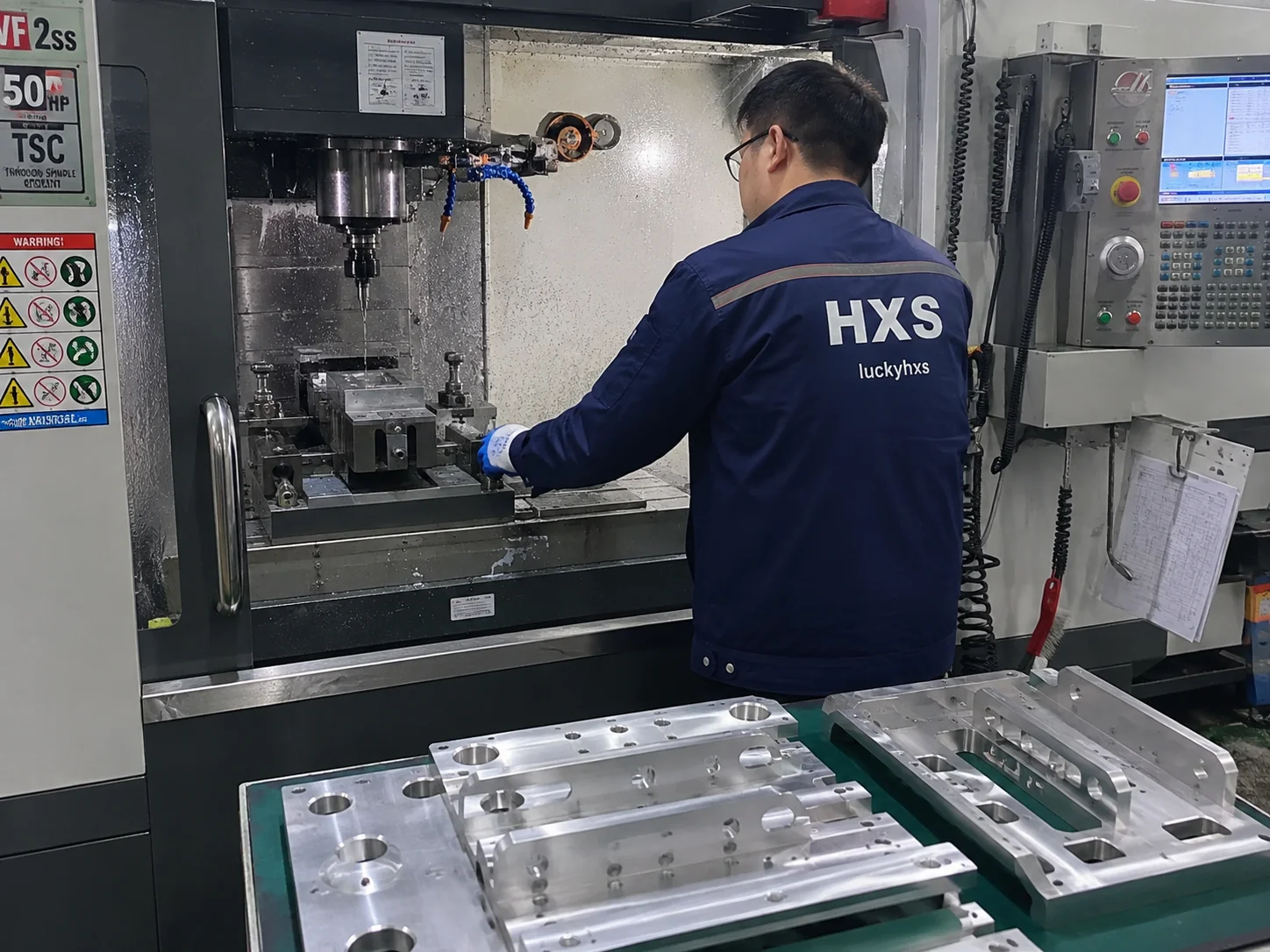

Precision CNC Milling
Scenario: Custom robot mounting brackets.
Constraint: Requires absolute flatness for open-frame structure.
Solution: High-speed 3-axis and 4-axis milling.
Benefit: Delivers Ra 0.8 surface finishes and flat profiles, ensuring zero distortion upon final cabinet assembly.

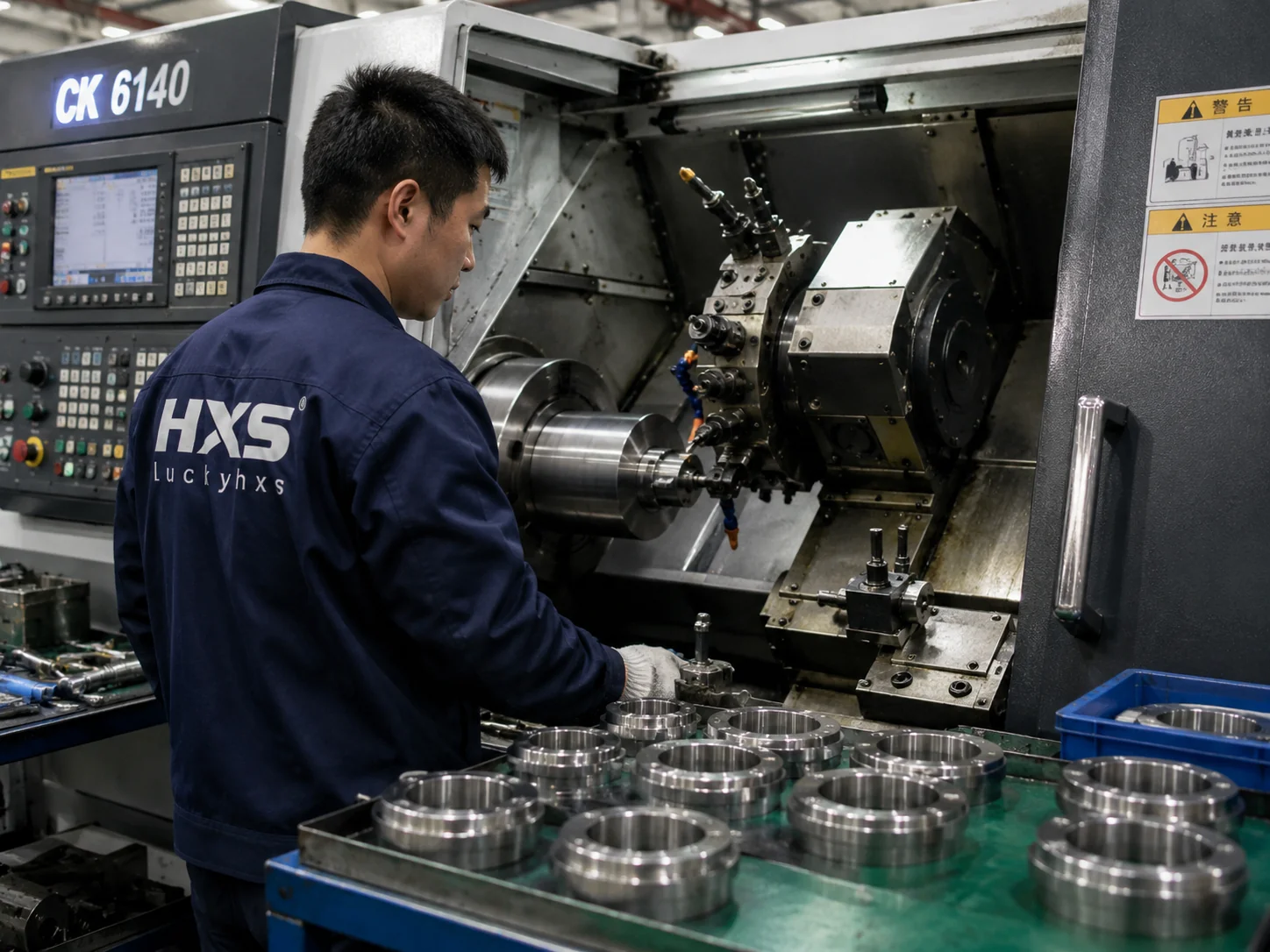

CNC Turning
Scenario: High-volume spacer rings and flanges.
Constraint: Cost control on large batch orders.
Solution: Automated bar-fed CNC lathes.
Benefit: Economical production of round components with consistent diameter tolerances up to Ø300mm.

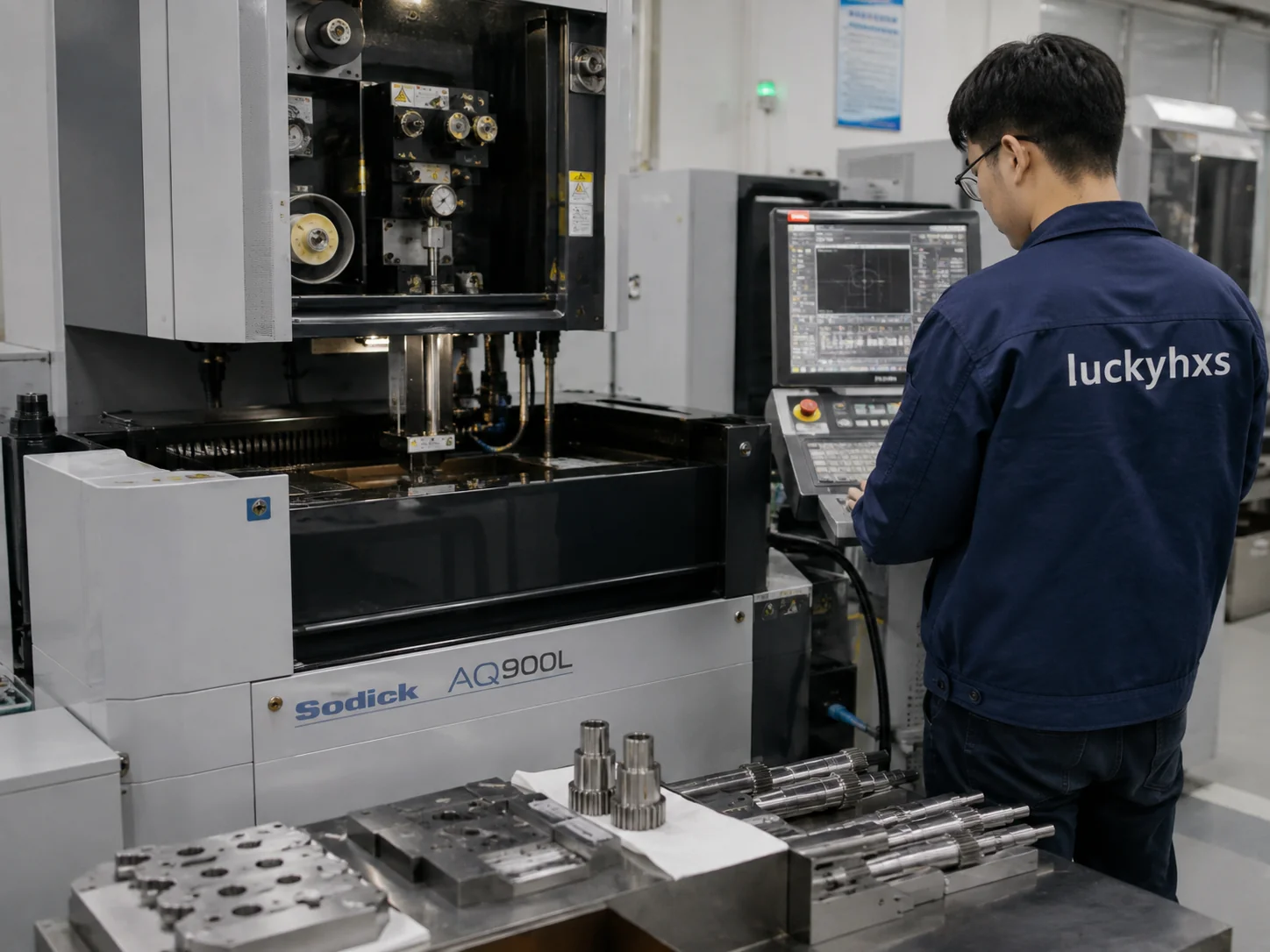

Wire EDM & Grinding
Scenario: Hardened steel gear keyways.
Constraint: Standard end mills cannot cut post-heat-treat HRC50+ steel.
Solution: Electrical Discharge Machining (EDM).
Benefit: Achieves internal corner radii of 0.05mm without inducing mechanical stress on the transmission part.
Engineered Components We Manufacture
From structural integrity to micro-motion control, we provide specific machining solutions for every sub-assembly of modern robotics.

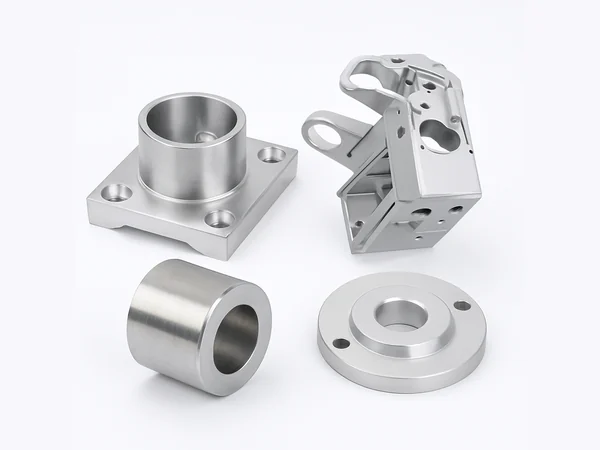

Robotic Arm Components & Joint Parts
Procurement Scenario: Designing high-payload 6-axis robot arms requiring maximum stiffness-to-weight ratios to prevent end-effector vibration.
Engineering Constraint: Standard steel is too heavy, increasing motor strain; cast aluminum lacks the tensile strength for high-torque joints.
Manufacturing Solution: We CNC machine joint links from solid AL7075-T6 billets, applying hard anodizing for wear resistance.
Client Benefit: Achieves aerospace-grade structural integrity, reducing overall arm weight by 30% while maintaining absolute rigidity during rapid deceleration.
- Material: AL7075, Titanium
- Tolerance: ±0.01mm
- Finish: Hard Anodized
- MOQ: 10 - 5000 pcs

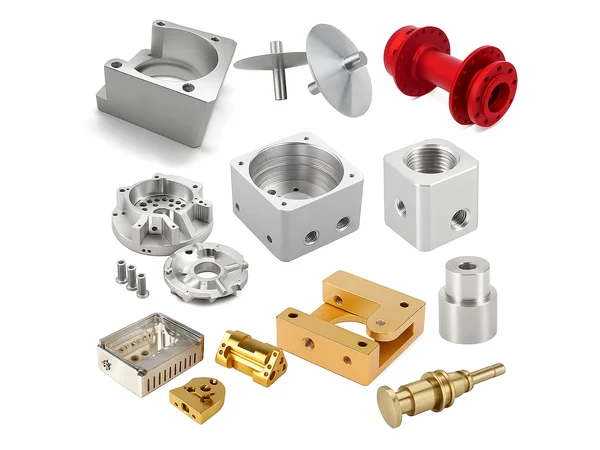

Motion Transmission Components
Procurement Scenario: Sourcing gear blanks and harmonic drive housings for precise cobot articulation.
Engineering Constraint: Even a 0.02mm runout in the transmission housing causes backlash and premature wear on the reducer.
Manufacturing Solution: We utilize turn-mill centers to machine inner and outer diameters in a single clamping, followed by precision cylindrical grinding.
Client Benefit: Guarantees concentricity within 0.005mm, ensuring smooth torque transfer, zero binding, and extending the lifespan of the motion assembly.
- Material: SS304, 4140 Steel
- Concentricity: 0.005mm
- Process: Turn-Mill + Grinding
- Inspection: CMM Verified

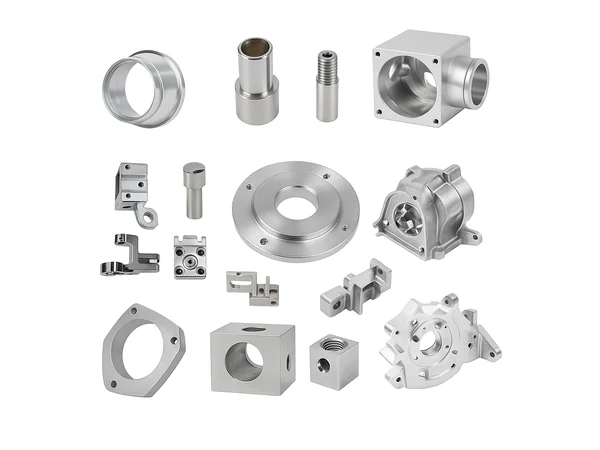

Robot End Effector Components
Procurement Scenario: Customizing pneumatic grippers or vacuum bases for specific payload handling lines.
Engineering Constraint: End effectors require complex internal air channels and varied mounting hole patterns that change per client project.
Manufacturing Solution: Agile 4-axis milling allows rapid changeovers to produce custom gripper fingers and base plates with precise M3/M4 threaded interfaces.
Client Benefit: Enables fast deployment of custom tooling. Interface compatibility is guaranteed, allowing seamless integration with standard robot wrist flanges.

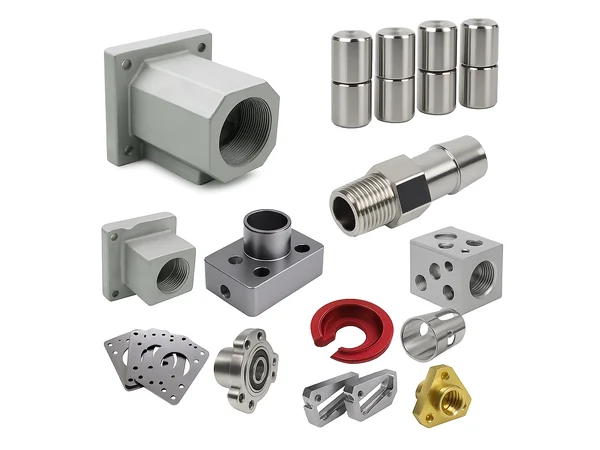

Robotic Housings & Enclosures
Procurement Scenario: Protecting sensitive motor drives and control boards in harsh industrial environments.
Engineering Constraint: Housings must provide IP67 sealing and EMI shielding, which requires perfectly flat mating surfaces and precise O-ring grooves.
Manufacturing Solution: We machine enclosures from AL6061, utilizing high-speed face milling to achieve Ra 0.8 flatness, followed by conductive chromate conversion coating.
Client Benefit: Eliminates water ingress risks and signal interference, ensuring the robot operates reliably in washdown or high-noise factory settings.

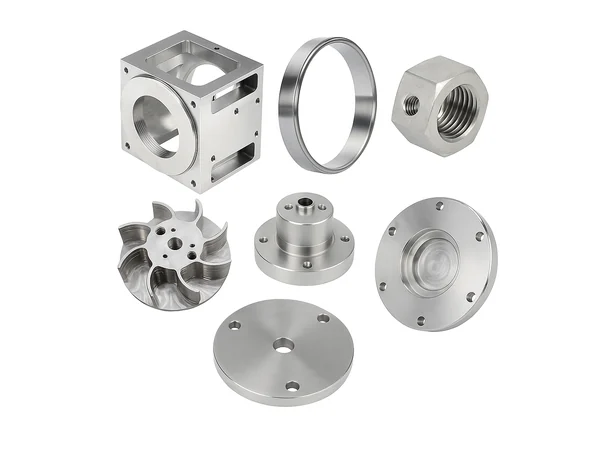

Robot Mounting Brackets
Procurement Scenario: Securing vision systems, cable management, or secondary payloads to the main robot structure.
Engineering Constraint: Sheet metal brackets vibrate and lose calibration. Cast brackets require expensive tooling for low-volume runs.
Manufacturing Solution: Direct CNC milling of open-frame structure brackets provides immediate structural rigidity without tooling costs.
Client Benefit: Vision systems remain perfectly calibrated regardless of arm acceleration. Cabinet drawing specs are met exactly from sample to mass production.

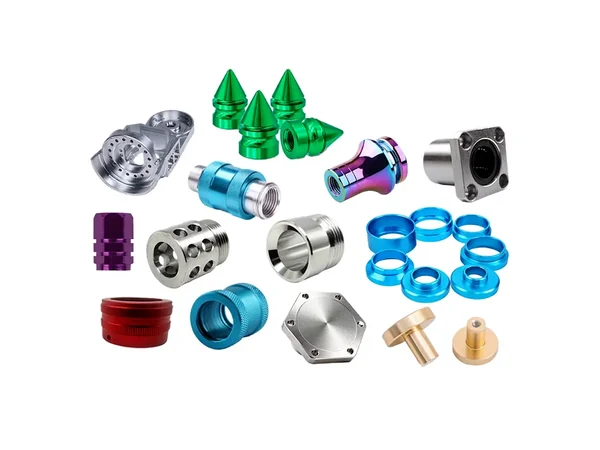

Precision Robot Shafts, Pins & Bushings
Procurement Scenario: Sourcing pivot points and alignment pins for automation linkages.
Engineering Constraint: Undersized pins cause slop; oversized pins bind. Surface hardness must withstand millions of cycles without galling.
Manufacturing Solution: Swiss CNC machining of bearing steel (SUJ2), followed by heat treatment and centerless grinding to H6 tolerances.
Client Benefit: True zero-backlash pivoting. Assembly technicians spend zero time hand-fitting parts, drastically reducing your factory labor costs.

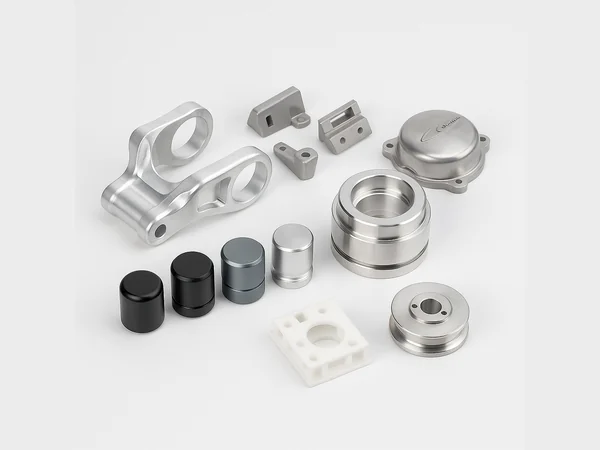

Robot Sensor & Electronic Components
Procurement Scenario: Housing LiDAR, optical encoders, and force-torque sensors.
Engineering Constraint: Optical lenses require mounting surfaces with strict perpendicularity to ensure accurate laser alignment.
Manufacturing Solution: Precision 5-axis milling of optical bases, utilizing CMM inspection to verify the angular relationship between mounting planes.
Client Benefit: Sensors read accurately out-of-the-box. Eliminates software compensation required for hardware misalignment.

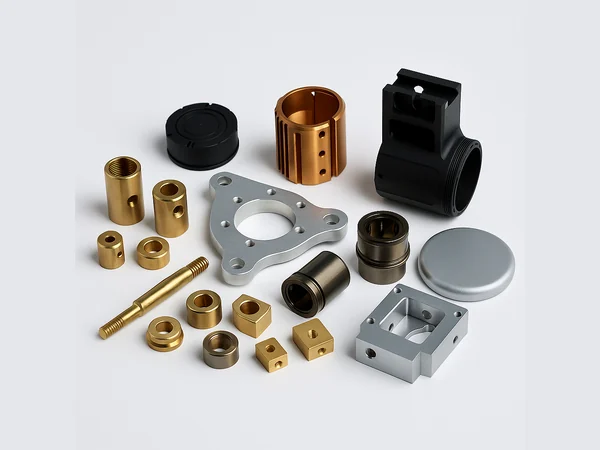

Robot Prototype CNC Parts
Procurement Scenario: R&D phase for a new cobot model requiring functional testing before committing to casting molds.
Engineering Constraint: 3D printing lacks the material strength for torque testing. Time-to-market is critical.
Manufacturing Solution: Dedicated rapid CNC milling cells turning CAD to physical metal parts in as little as 3-5 days.
Client Benefit: Engineers can validate form, fit, and function using production-intent materials, securing fast sample approval without tooling risks.
Individual Dimensions PASS ≠
Complete Robot Assembly PASS
Assembly Risk
A single shaft tolerance error can affect:
- Bearing alignment
- Servo motor performance
- Robot repeatability
In robotics, a shaft measuring exactly 10.00mm diameter is useless if its runout relative to the bearing journal is 0.05mm. Traditional machine shops check basic calipers and ship. At LuckyHXS, we focus on Geometric Dimensioning and Tolerancing (GD&T). We inspect concentricity, perpendicularity, and true position using Hexagon CMMs, ensuring that when your technician slides the shaft into the housing, it aligns perfectly without binding the servo motor.
Engineering Verification Workflow
Individual Measurement
Verifying exact baseline dimensions (e.g., 10.00mm diameter) prior to complex relationship checks.
GD&T Relationship Check
Utilizing Hexagon CMMs to inspect concentricity, runout, perpendicularity, and true position.
Assembly-Level Validation
Guaranteeing perfect housing alignment and preventing servo motor binding during final integration.
Prototype PASS ≠ Production Repeatability PASS
Why Prototype Parts Fail at Scale?
Many suppliers fail at scale because they rely on manual clamping, causing thin-walled enclosures to deform under pressure.
- 01 Manual Setup Variation
- 02 Fixture & Tooling Instability
- 03 Batch Dimension Drift
Prototype to Production Workflow
STEP 01: Prototype Machining
Machining 5 perfect robot joint housings from a solid block requires patience.
STEP 02: Process Optimization
Machining 5,000 pieces requires process engineering. We design dedicated hydraulic fixtures and optimize CNC toolpaths specifically for mass production stability.
STEP 03: Repeat Production Control
The 5,000th piece will match the 1st piece.
Motion Components Require Stable Alignment & Runout Control
Integrating a harmonic reducer into a CNC machined arm requires absolute interface compatibility. If the mounting flange is not perfectly flat, bolting the reducer down will distort its internal flexspline, causing premature wear and position errors.
We control surface flatness to Ra 0.8 and utilize 5-axis machining to ensure all mounting holes are perfectly aligned to the central axis, protecting your expensive motion hardware.
What Is CNC in Robotics?
Computer Numerical Control (CNC) is the subtractive manufacturing process that translates digital CAD models into physical metal parts. While 3D printing builds layers, CNC uses high-speed rotating cutting tools to carve solid blocks of aluminum, steel, or titanium.
In robotics, CNC machining is non-negotiable for structural and motion components. It is the only process that can consistently deliver the ±0.01mm tolerances, Ra 0.8 surface finishes, and absolute material density required for robot joints, housings, precision shafts, and interface plates to function under dynamic loads.
Will AI Replace CNC Machinists?
AI is revolutionizing CAM software by generating optimized toolpaths faster and reducing machining time. However, it will not replace the experienced CNC machinist in high-precision robotics manufacturing anytime soon.
Why? Because AI cannot "feel" the vibration of a long end-mill chattering inside a deep cavity. AI cannot intuitively know the exact clamping pressure required to hold a thin-walled aluminum robot housing without warping it. At LuckyHXS, we use advanced software for efficiency, but rely on our engineers' 20+ years of tactile experience to solve complex manufacturing constraints.

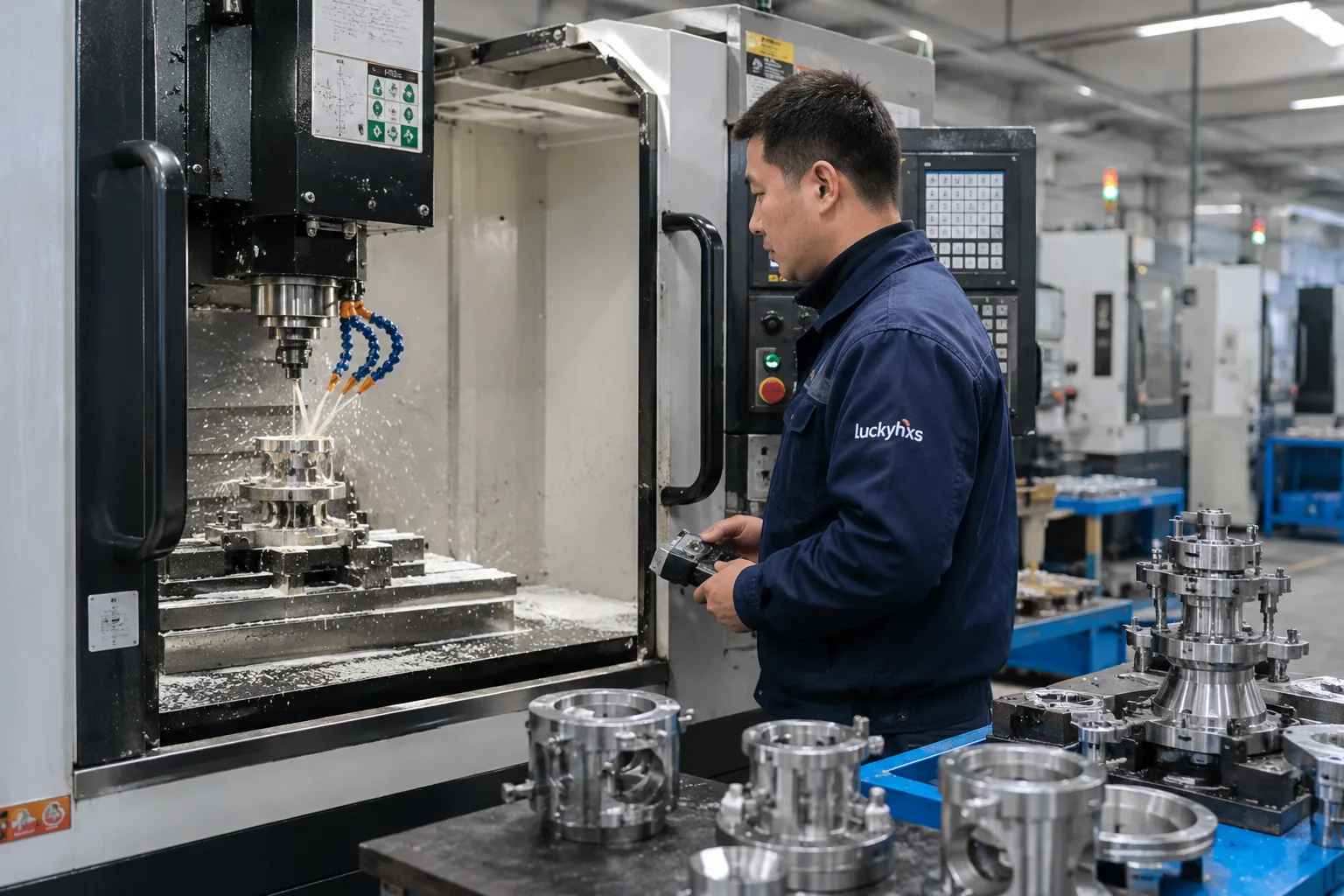

100% Pre-Shipment Quality Inspection
We do not rely on sampling when it comes to motion components. Every critical dimension is verified.

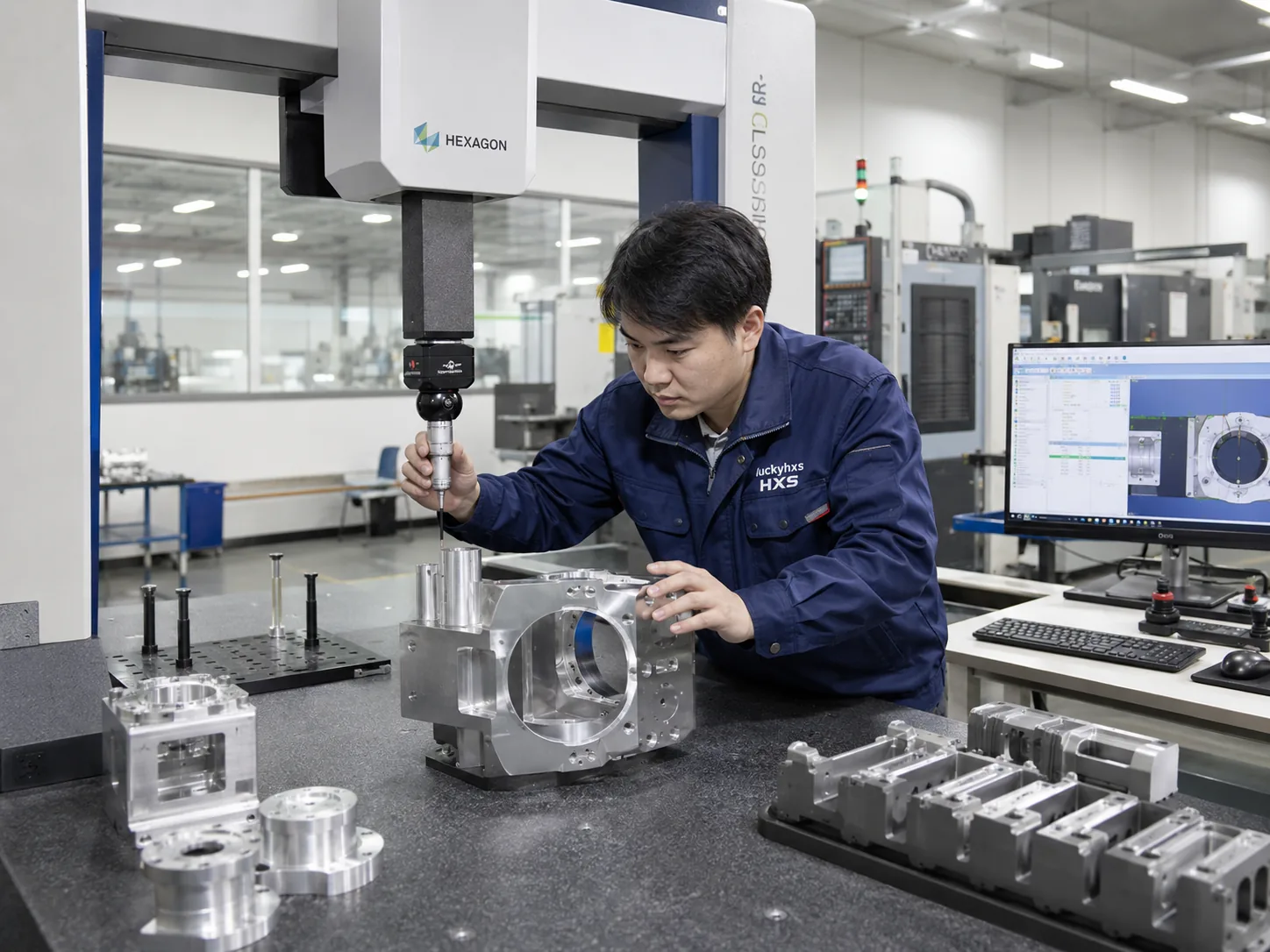

Hexagon CMM
Verifying true position, concentricity, and complex 3D surface profiles against your CAD model.
Optical Projectors
Checking micro-chamfers, thread profiles, and internal groove dimensions on Swiss turned pins.

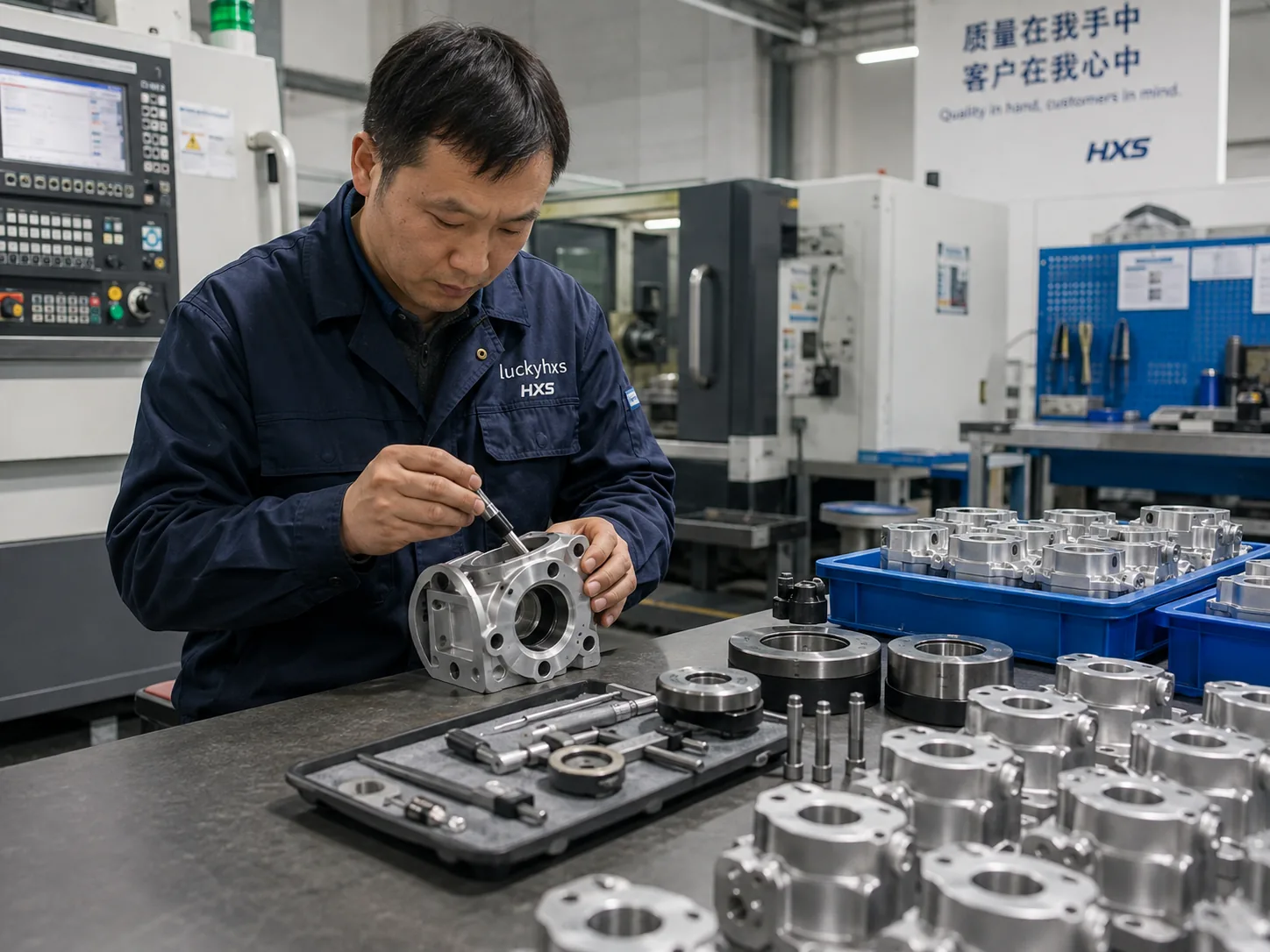

Hard Gauging
100% manual check of critical bearing bores and threaded holes using calibrated plug and ring gauges.

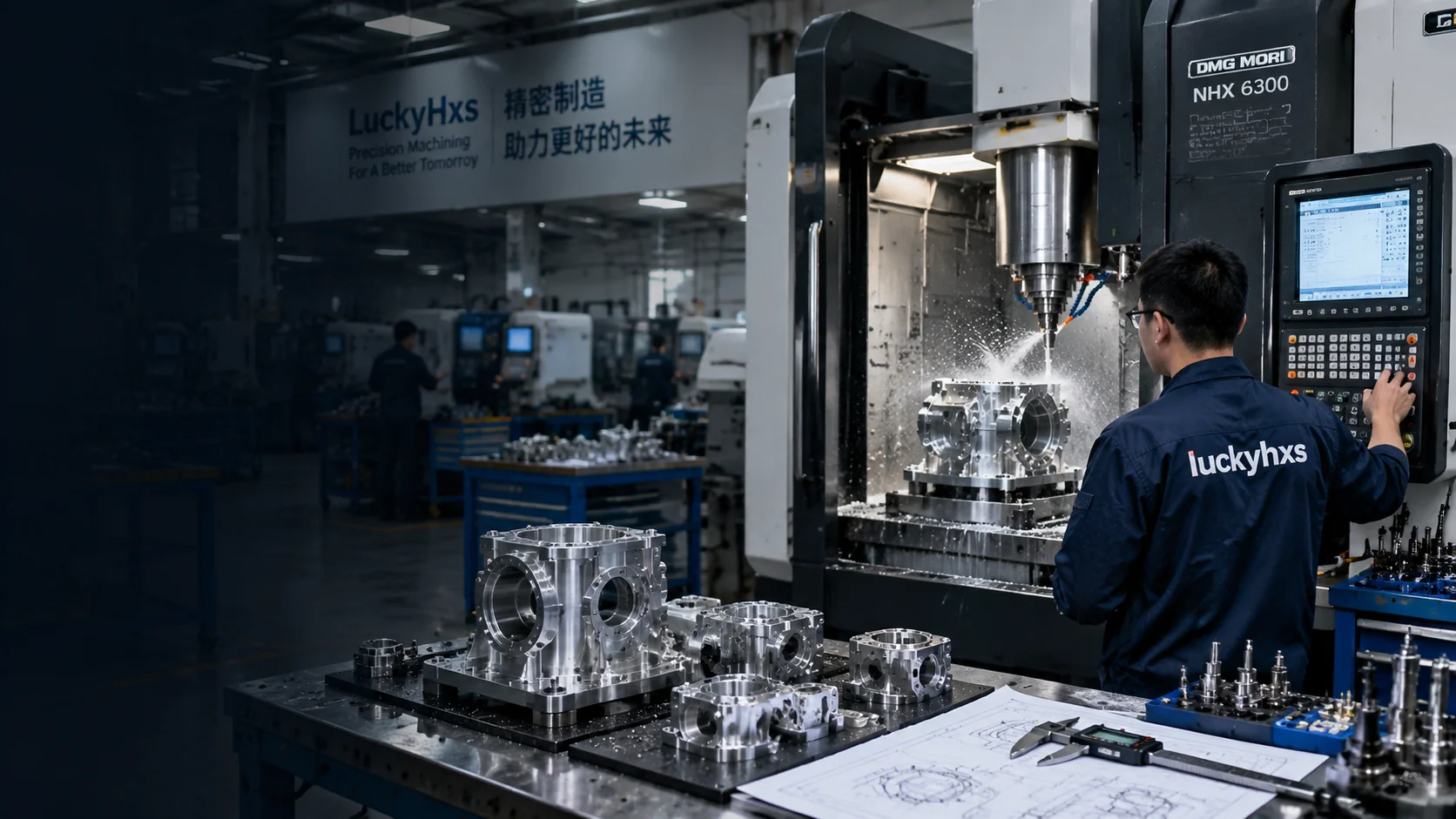

Inside the LuckyHXS Facility
153 CNC Machines running 24/7 to meet global automation demands.
Why European Cobot OEMs Audit Our Shenzhen Facility
Transparency builds trust. We welcome automation engineers and procurement managers to audit our ISO9001 certified facility in Songgang, Shenzhen. See firsthand how we manage raw material traceability, tooling calibration, and mass production workflows.
- Open review of our CMM inspection reports.
- Walkthrough of our 5-axis and Swiss machining cells.
- Direct consultation with our senior manufacturing engineers.
Certified Manufacturing Excellence
ISO 9001
CE
REACH
RoHS
TEST REPORT
Frequently Asked Questions
What is the typical lead time for robot prototype CNC parts?
Can you maintain Ra 0.8 surface finish on robotic housings?
Do you provide CMM reports with mass production orders?
Ready to Secure Your Supply Chain?
Upload your 2D/3D drawings and let our engineering team review manufacturability, materials, tolerances, and production requirements before quotation.
DFM Engineering Review Before Production
Our engineers review critical dimensions, tolerances and machining feasibility.
±0.01mm Precision CNC Machining
Stable accuracy supported by CNC turning, milling and Swiss machining.
Prototype to Mass Production Support
From first samples to repeat orders with consistent quality.
NDA & Drawing Protection
Your technical drawings and project information remain confidential.
